Driver's Door Subharness (RTS, RTL and EXL Models)
Driver's Door Subharness (RTS, RTL and EXL Models)

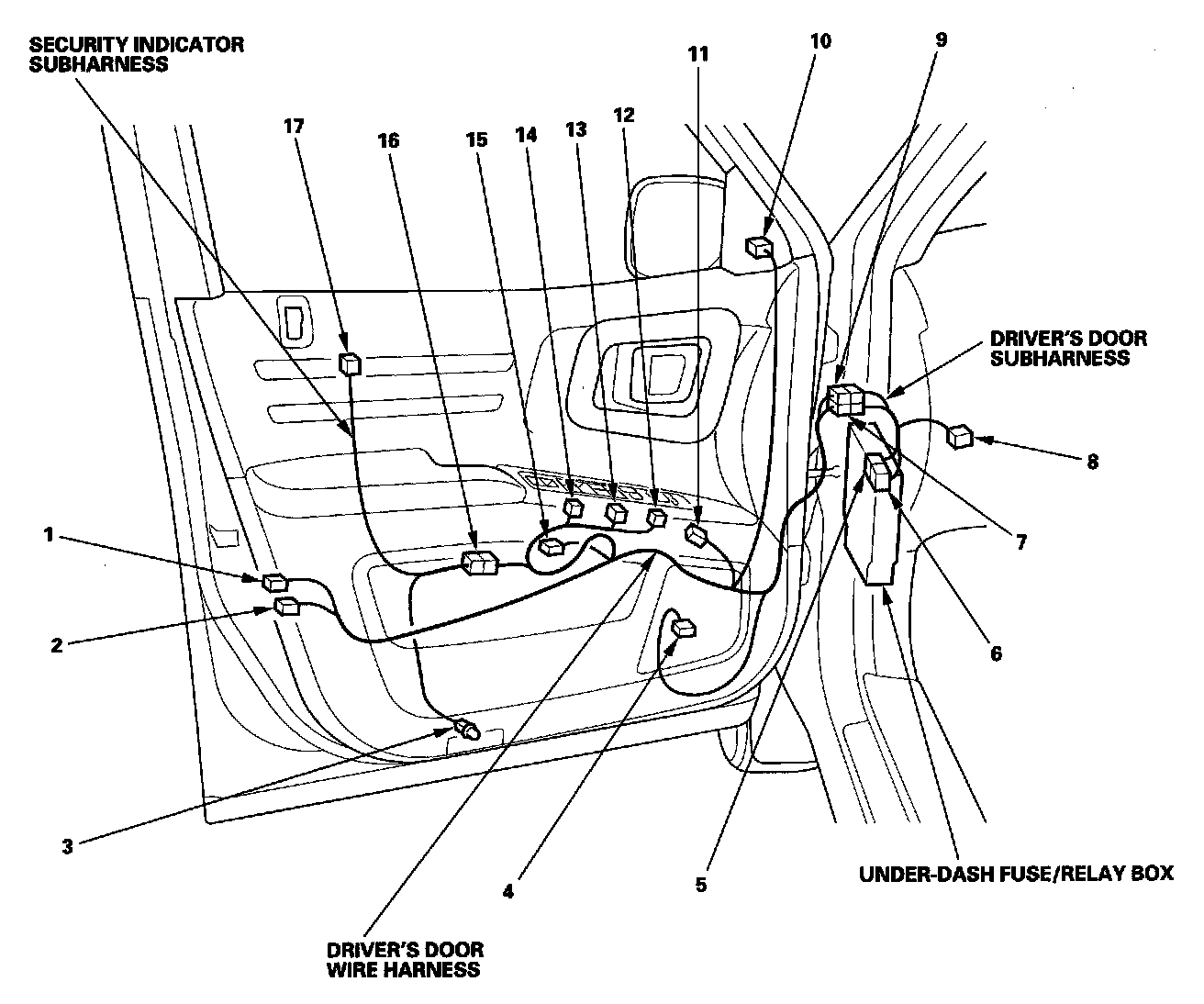

Harness Location View:
Security Indicator Subharness (RTS, RTL, And EXL Models):
