Cargo Lamp: Service and Repair

Cargo Area Light Replacement

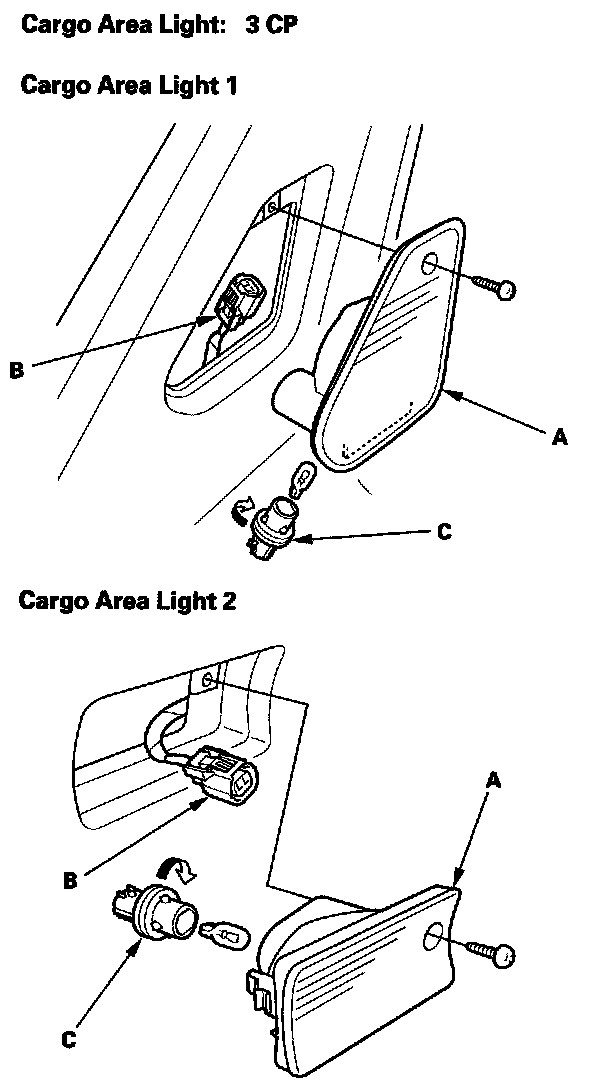

1. Remove the screw and cargo area light (A).






2. Disconnect the 2P connector (B) from the light.
3. Turn the bulb socket (C) 45° counter clockwise to remove the bulb.
4. Install the light in the reverse order of removal.
