Map Light: Service and Repair

Front Individual Map Light Replacement

With Home Link Remote Control System

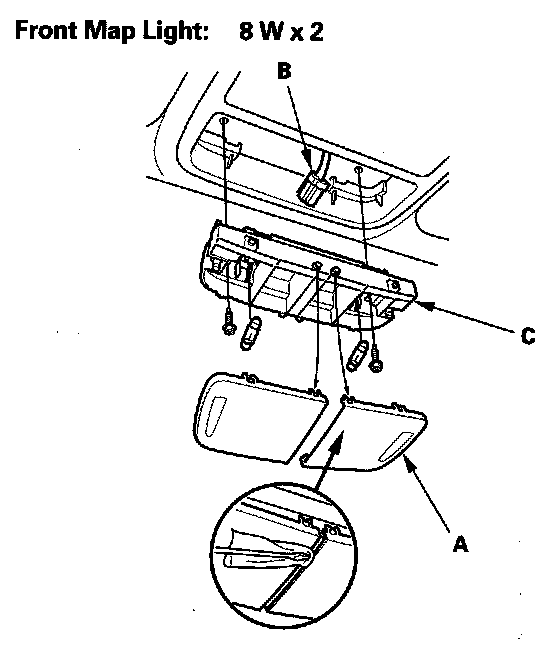

1. Carefully pry off the lens (A) with a small screwdriver.






2. Remove the two mounting screws.
3. Disconnect the 3P connector (B) from the housing (C).
4. Disconnect the 10P connector (D) from the ambient light (E).
5. Install the light in the reverse order of removal.

Without Home Link Remote Control System

1. Carefully pry off the lens (A) with a small screwdriver.






2. Remove the two mounting screws.
3. Disconnect the 3P connector (B) from the housing (C).
4. Install the light in the reverse order of removal.
