Fluid - Differential: Service and Repair
Differential Fluid Inspection and Replacement1. Raise the vehicle on a lift.

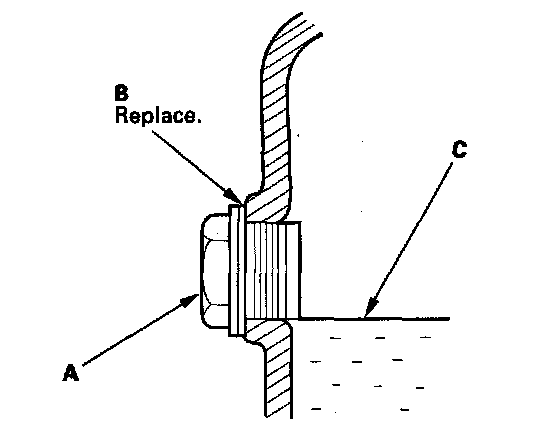

2. Remove the filler plug (A) and the sealing washer (B), then check the condition of the fluid, and make sure the fluid is at the proper level (C).
3. The fluid level must be up to the fill hole. If it is below the hole, add the recommended fluid until it runs out.
^ If the fluid is dirty, go to step 4.
^ If the fluid is not dirty, reinstall the filler plug with a new sealing washer.

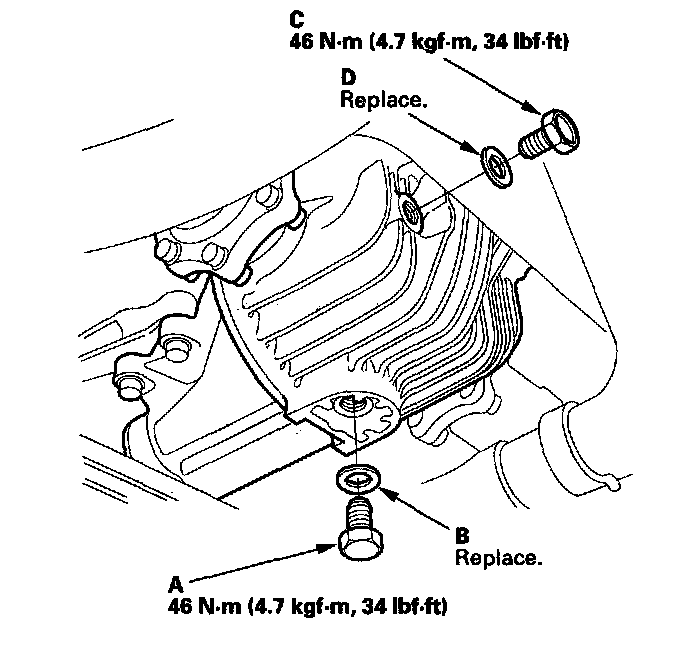

4. Remove the drain plug (A), and drain the fluid.
5. Clean the drain plug, then reinstall it with a new sealing washer (B), and refill the differential with the recommended fluid to the proper level.
Fluid capacity
0.74 L (0.78 US qt), at fluid change
0.77 L (0.81 US qt), at overhaul
Recommended fluid
Hypoid gear oil
API Classification: GL5 or GL6
Viscosity: SAE 90
6. Reinstall the filler plug (C) with a new sealing washer (D).
