Center Console Armrest Replacement

Center Console Armrest Replacement

Special Tools Required
- KTC trim tool set SOJATP2014*

NOTE:

- Take care not to scratch the console.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the center console. Center Console Removal/Installation

2. Remove the screws securing the driver's side panel (A) and the passenger's side panel (B) from the console box (C), and slide the driver's side panel and the passenger's side panel forward to release the ribs (D) of the panels from the hooks (E) of the box, then remove the panels.

3. For some models: Open the console armrest (F), and remove the box tray (G) by pulling it up.






4. Remove the screws, then remove the left box rail (A) and the right box rail (B) by pulling them up from the console box (C).

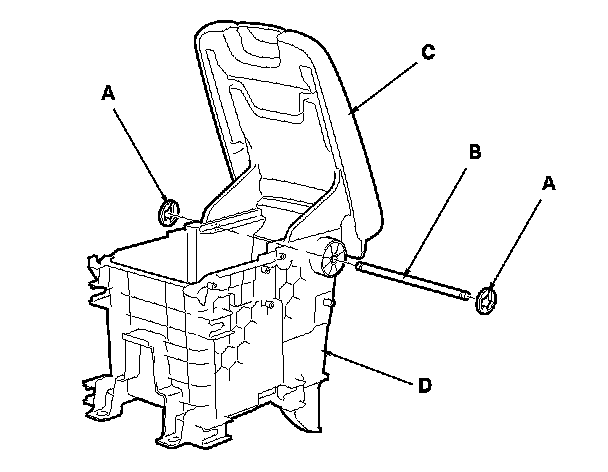

5. Remove the E-clips (A) and the hinge pin (B) from the console armrest (C) and the console box (D).






6. From both rear sides of the console box (A), release the opening springs (B) from the bosses (C) of the box, and close the console armrest (D). This rotates the opening springs into the notches (E) on the box.






7. Open the console armrest (A). While passing the gear portions (B) of both sides through the notches (C) in the console box (D) and releasing the ends of the opening springs (E) from the notches (F), slide the armrest rearward, then remove it. Remove the opening springs from the box.

8. Install the armrest in the reverse order of removal, and note these items:
- Replace the E-clips with new ones.

- Make sure the ribs of the driver's side panel and the passenger's side panel are engaged to the hooks of the console box securely.
