Moonroof Control Unit Input Test (With Moonroof)

Moonroof Control Unit Input Test

NOTE: If the moonroof works OK manually, but will not work in AUTO, or reverses frequently (obstacle detection), reset the moonroof Programming and Relearning before proceeding with the input test.

1. Turn the ignition switch to LOCK (0).

2. Remove the headliner. Service and Repair

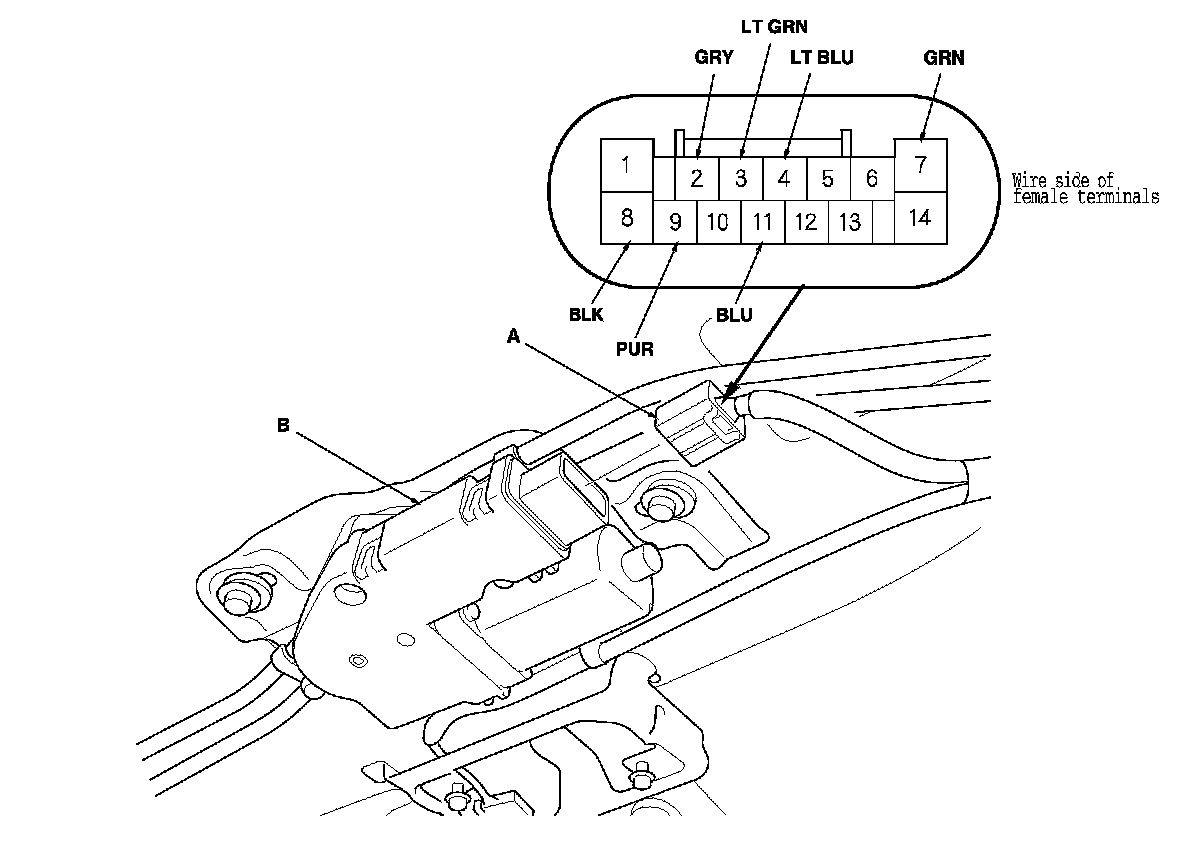

3. Disconnect the 14P connector (A) from the moonroof control unit (B).

4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, go to step 5.

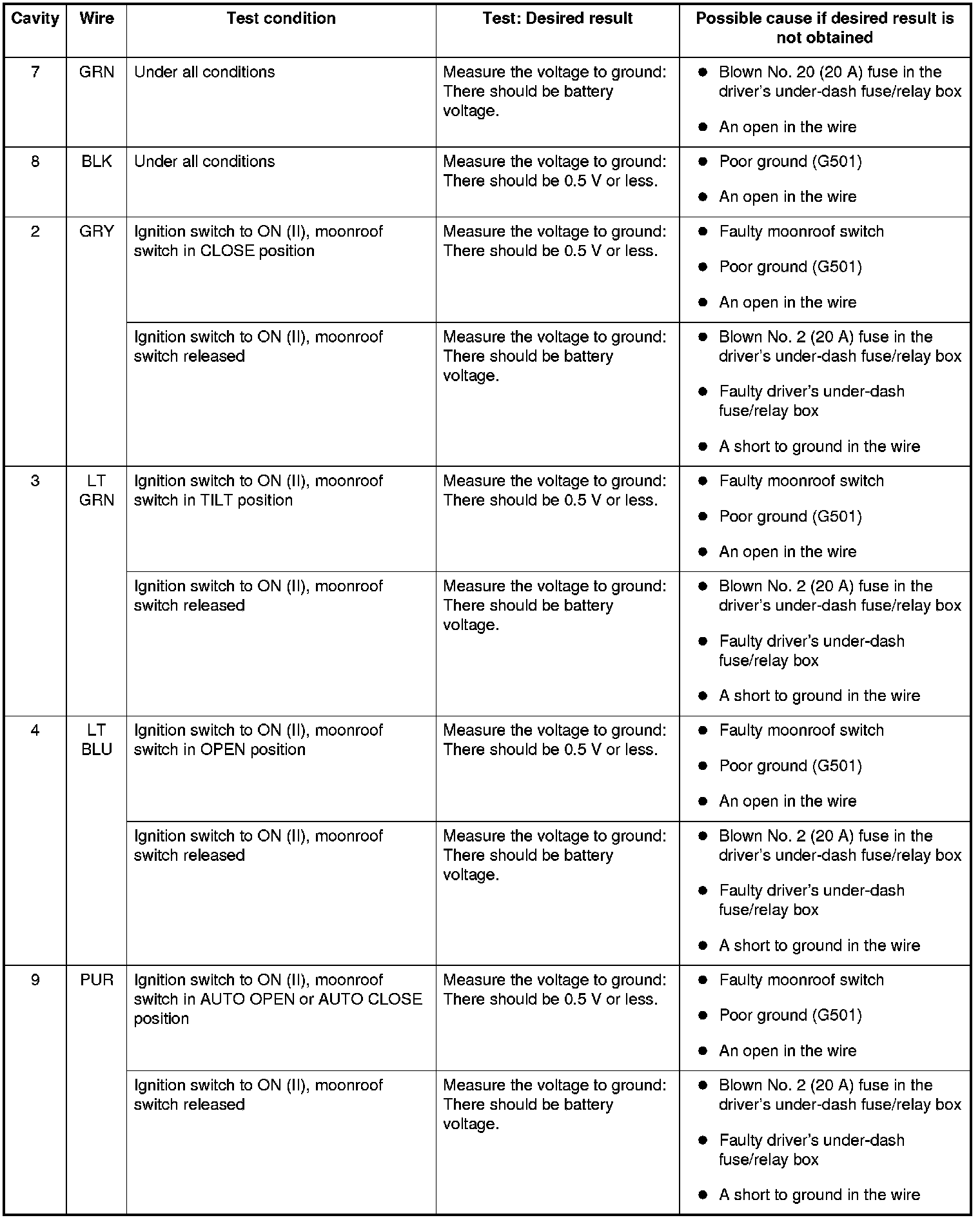

5. With the connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 6.

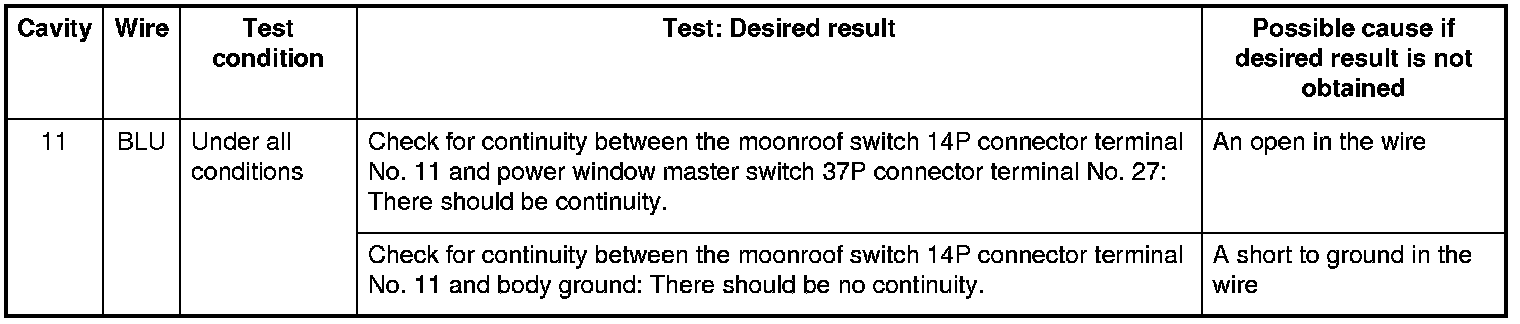

6. Reconnect the connector to the control unit, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 7.





7. If all the input tests are OK and multiple failures are found, replace the moonroof control unit/motor assembly. If the problem is related to the key-off operation, go to the driver's MICU input test Keyless/Power Door Locks/Security System Control Unit Input Test, and passenger's MICU input test. Keyless/Power Door Locks/Security System Control Unit Input Test
