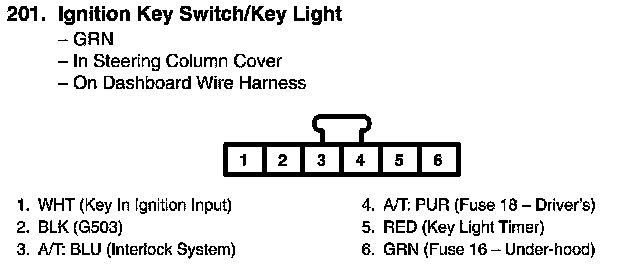

View 201 Ignition Key Switch/Key Light Connector View
View 201 Ignition Key Switch/Key Light Connector View
