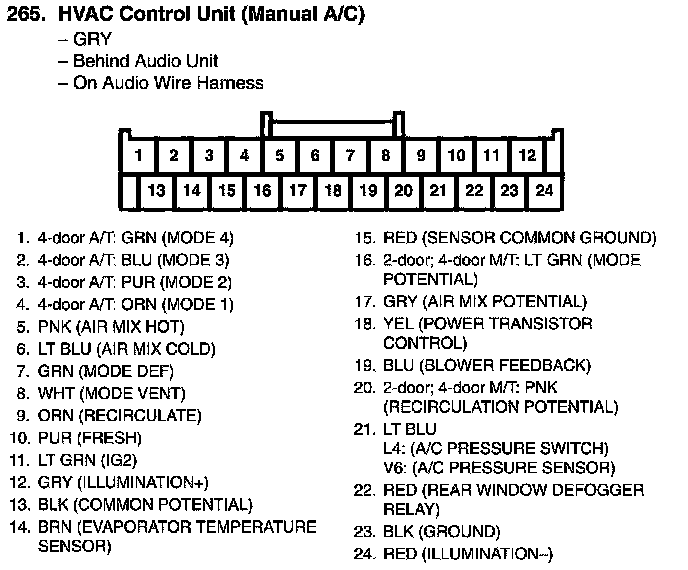

View 265 HVAC Control Unit Connector View (Manual A/C)
View 265 HVAC Control Unit Connector View (Manual A/C)
