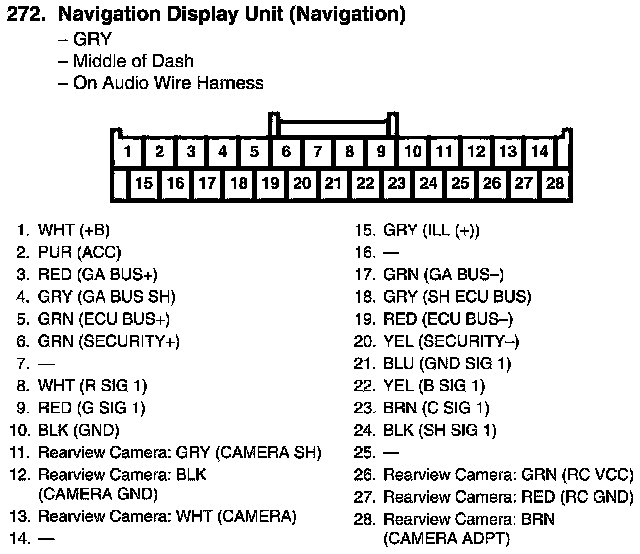

View 272 Navigation Display Unit Connector View (Navigation)
View 272 Navigation Display Unit Connector View (Navigation)
