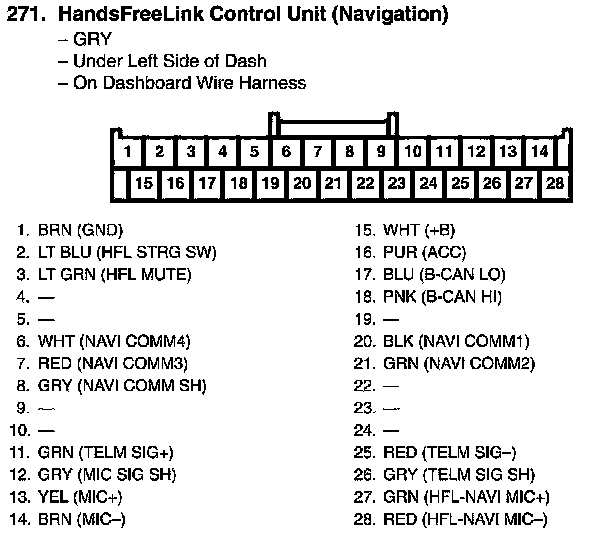

HandsFreeLink Control Unit Connector View (Navigation)
HandsFreeLink Control Unit Connector View (Navigation)
