Home
>>
Honda
>>
2009
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
End Cover
End Cover
End Cover

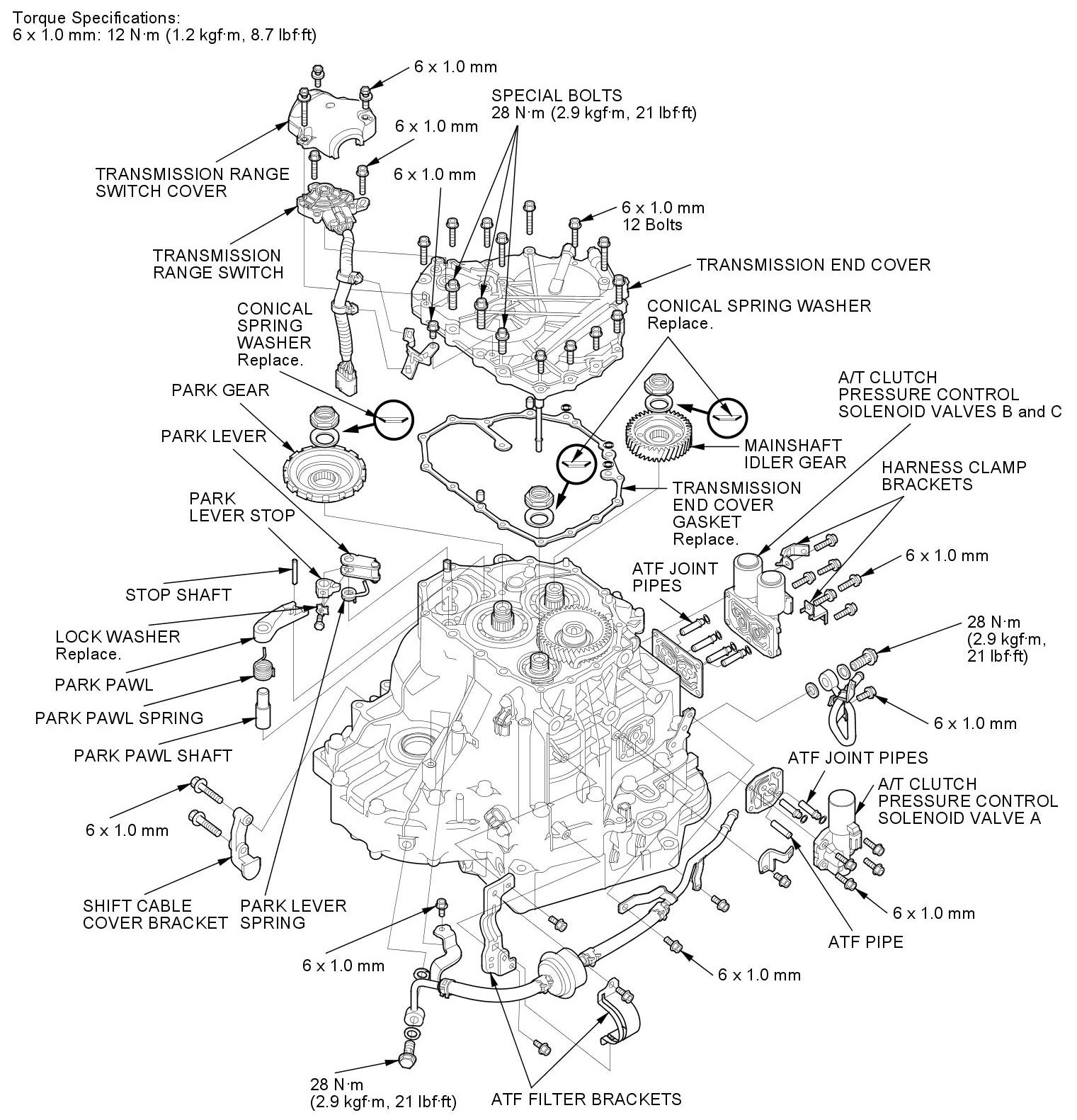

Exploded View
