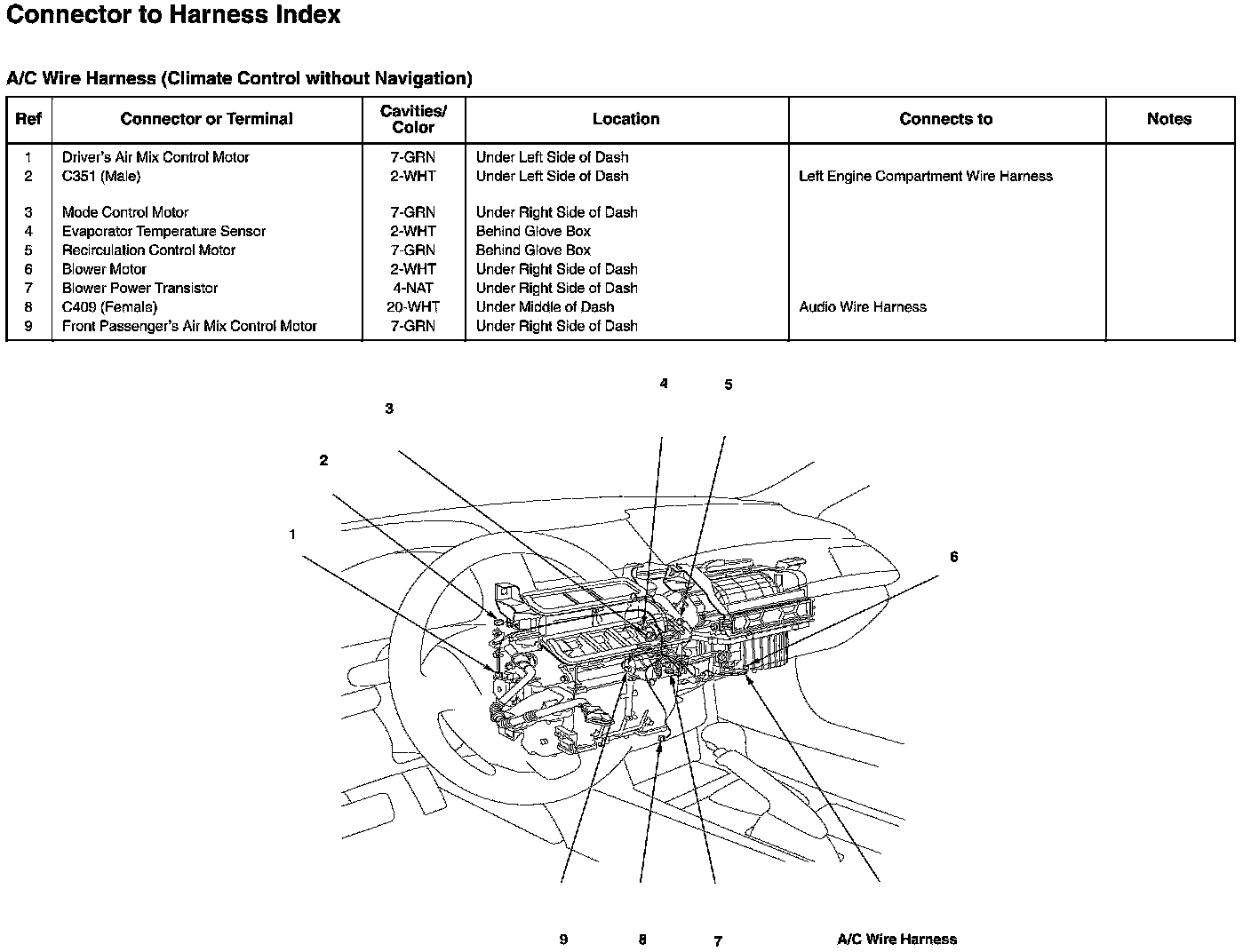

A/C Wire Harness Connector and Harness Locations (Climate Control Without Navigation)
A/C Wire Harness Connector and Harness Locations (Climate Control Without Navigation)
