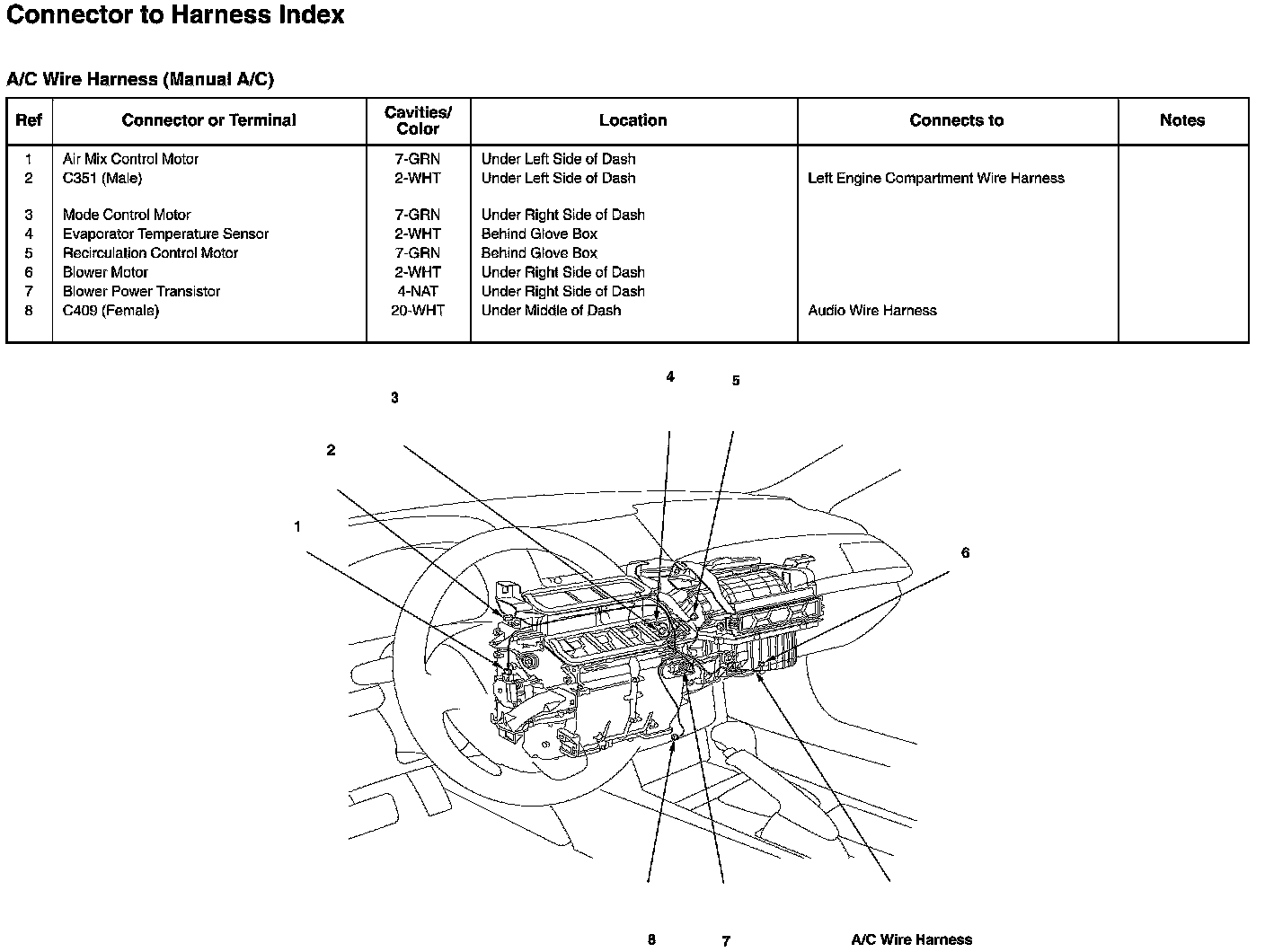

A/C Wire Harness Connector and Harness Locations (Manual A/C)
A/C Wire Harness Connector and Harness Locations (Manual A/C)
