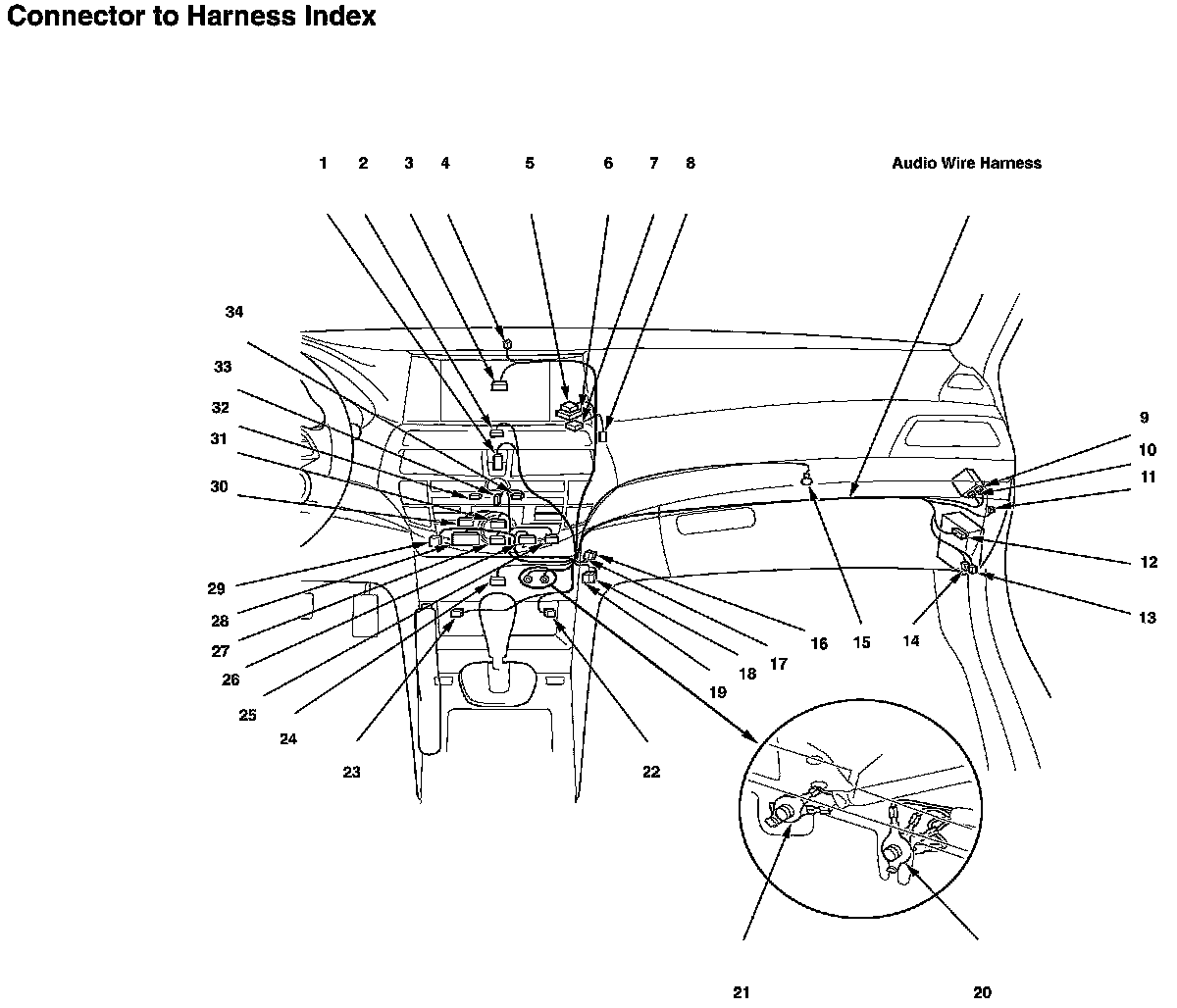

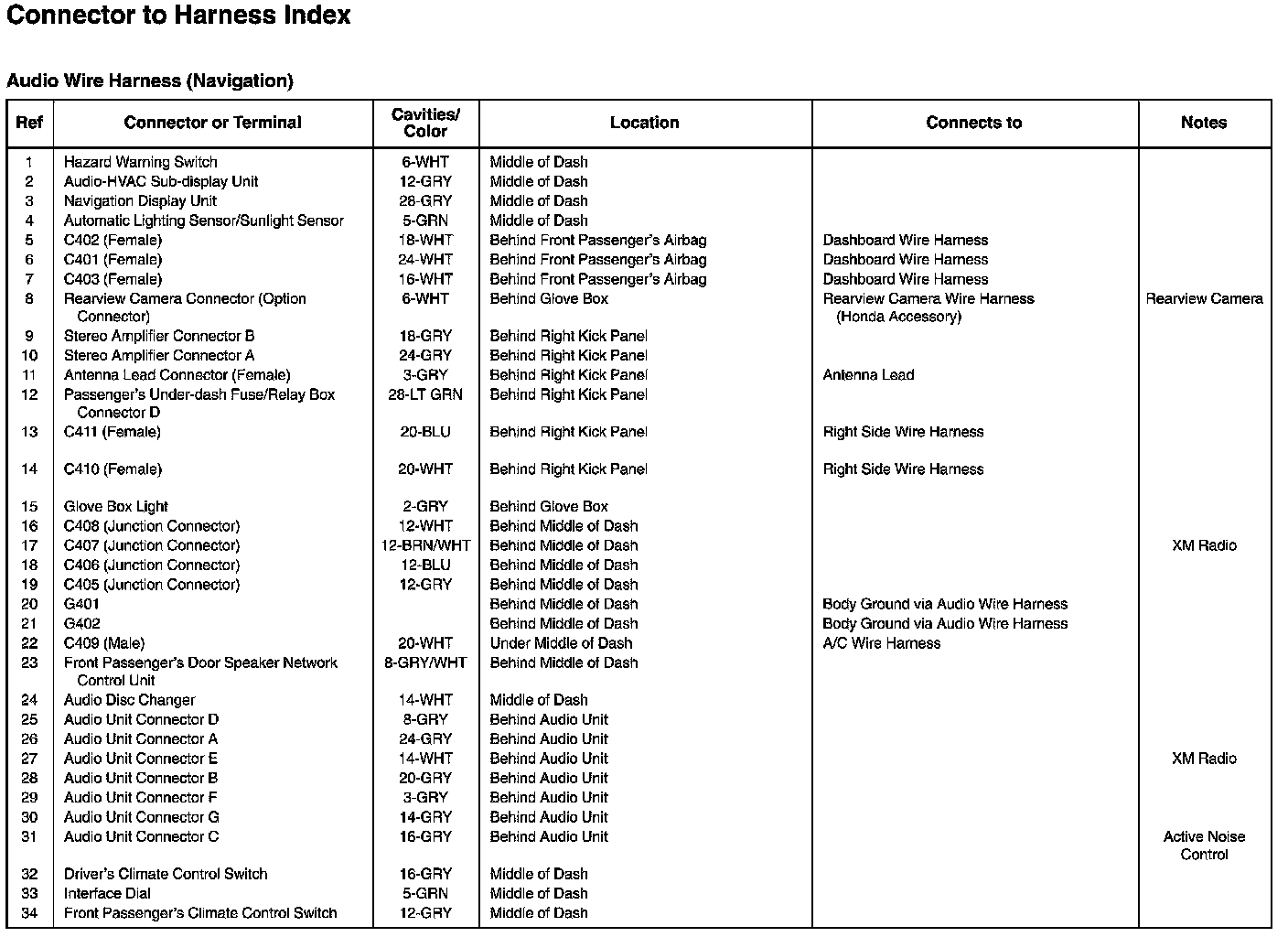

Audio Wire Harness Connector and Harness Locations (Navigation)
Audio Wire Harness Connector and Harness Locations (Navigation)
