Outside Air Temperature Sensor Test (Without Climate Control)

Outside Air Temperature Sensor Test

1. Remove the outside air temperature sensor. Outside Air Temperature Sensor Replacement (Without Climate Control)

2. Dip the sensor in ice water, and measure the resistance. Then pour warm water on the sensor, and check for a change in resistance.

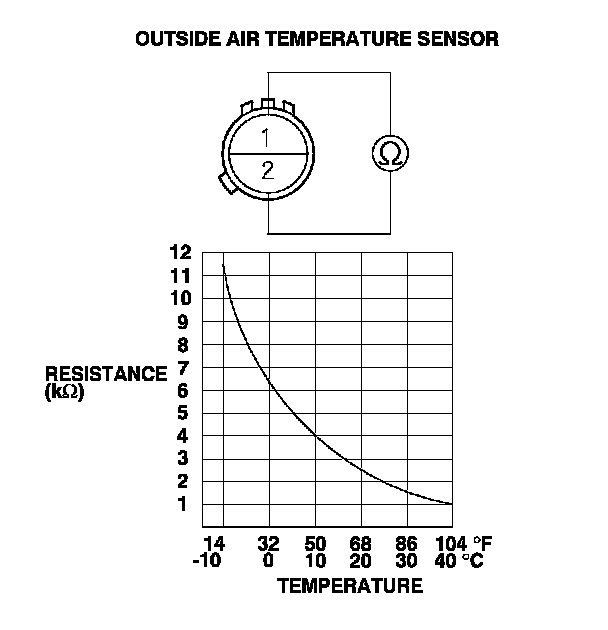

3. Compare the resistance reading between the terminals No. 1 and No. 2 of the outside air temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.

4. If the resistance is not as specified, replace the outside air temperature sensor. Outside Air Temperature Sensor Replacement (Without Climate Control)
