Ignition Key Light Test

Ignition Key Light Test

1. Remove the steering column upper and lower covers. Service and Repair

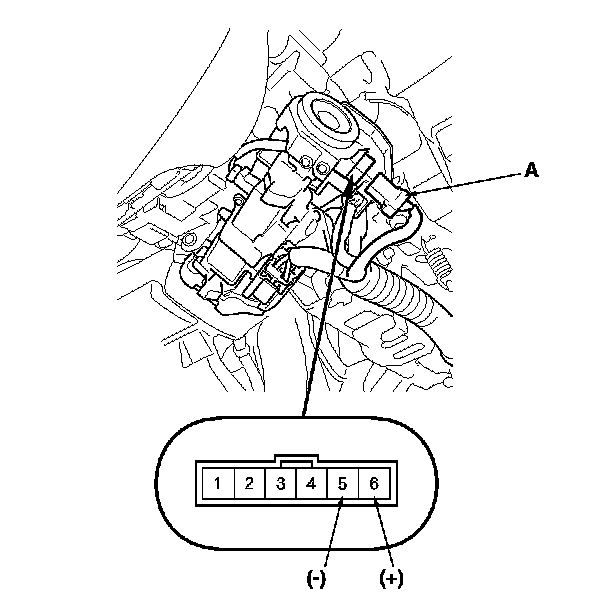

2. Disconnect the 6P connector (A).

3. The LED should come on when power is connected to the terminal No. 6 and ground is connected to terminal No. 5.

4. If the LED does not come on, replace the ignition switch.
