Home >> Honda >> 2009 >> Accord L4-2.4L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Diagram Set 14 (Ground Distribution) >> G501

G501

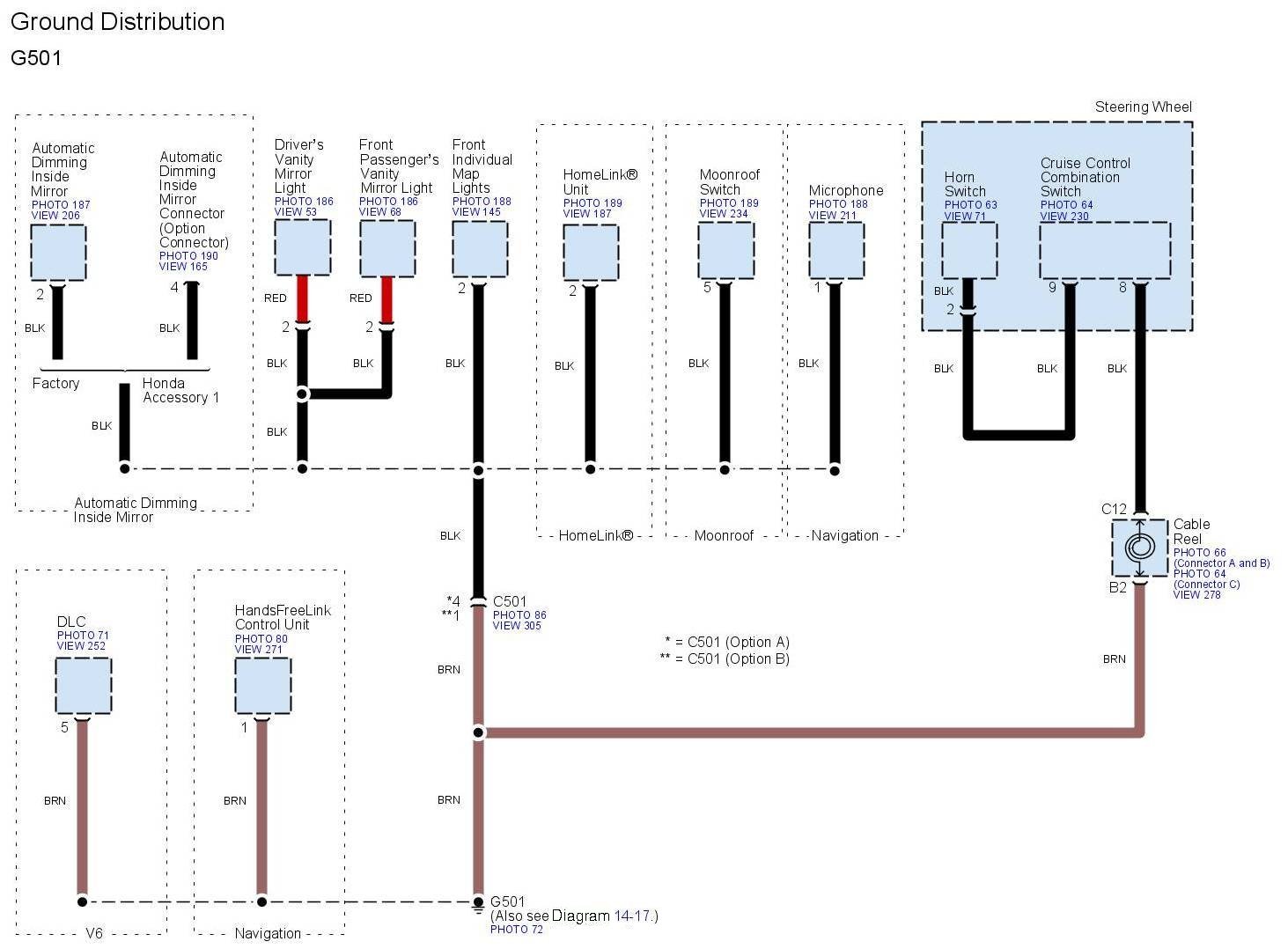

Diagram 14-17:

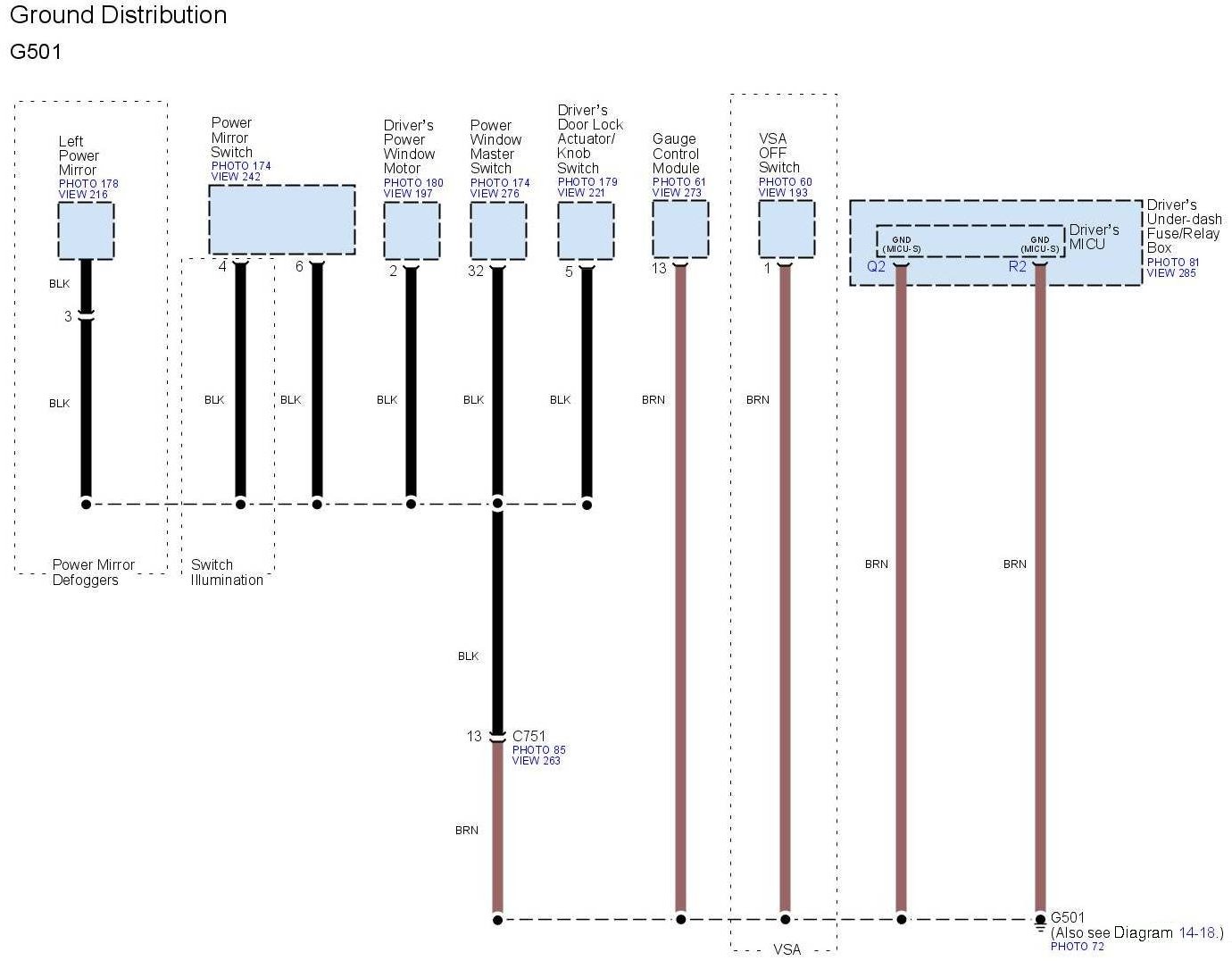

Diagram 14-18:
