Countershaft Reverse Selector Hub and 3rd Gear Removal




Countershaft Reverse Selector Hub and 3rd Gear Removal

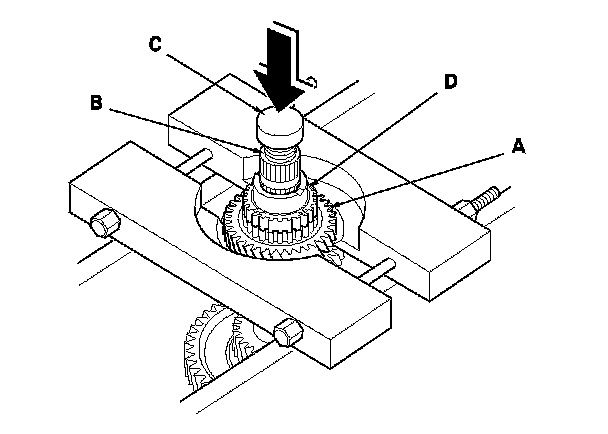

1. Install a commercially available bearing separator on 4th gear (A). Set the countershaft (B) on a press with a spacer (C) between the press and the countershaft, and remove the reverse selector hub (D).
NOTE: Some reverse selector hubs are not press-fitted, and can be removed without using the bearing separator and a press.

2. Remove the needle bearing, the set ring, the 35 x 47 x 7.8 mm collar, and the 31 mm cotters.

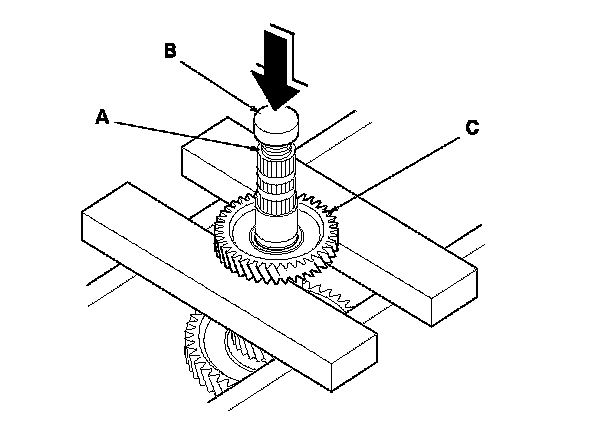

3. Set the countershaft (A) on a press with a spacer (B) between the press and the countershaft, and remove 3rd gear (C).

4. Remove the 37 x 41 x 54.3 mm collar, 5th gear, 1st gear, and 2nd gear.
