Tightening Torques and Sequences

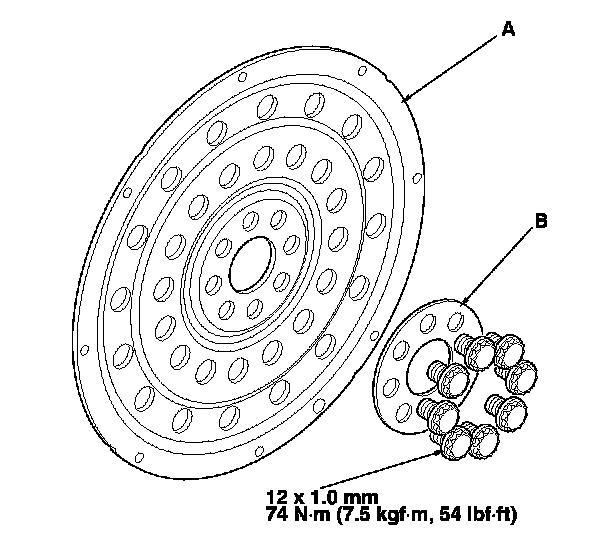

Flexplate Torque and Sequence
Torque the flexplate mounting bolts in a crisscross pattern in several steps.




Exploded Views

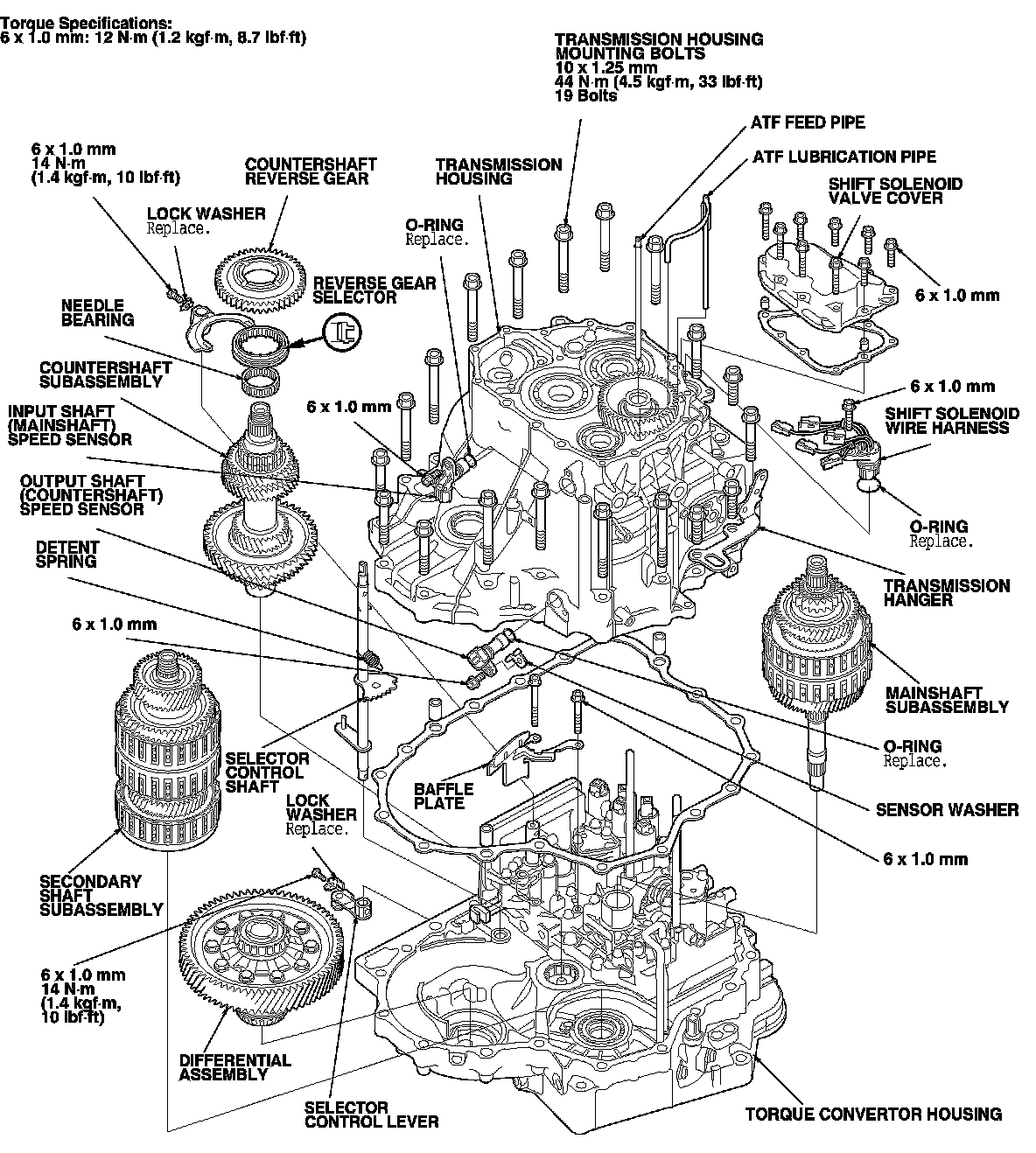

A/T Shaft Assembly and Housing




End Cover


For information regarding Transmission Overhaul Specifications, please refer to Service and Repair. Service and Repair
