Countershaft Reassembly

M/T Countershaft Reassembly

Exploded View





Special Tools Required
- Inner driver handle, 40 mm 07746-0030100
- Inner bearing driver attachment, 30 mm 07746-0030300

NOTE: Refer to the Exploded View, as needed, during this procedure.

1. Clean all parts in solvent, dry them, and apply MTF to all contact surfaces.

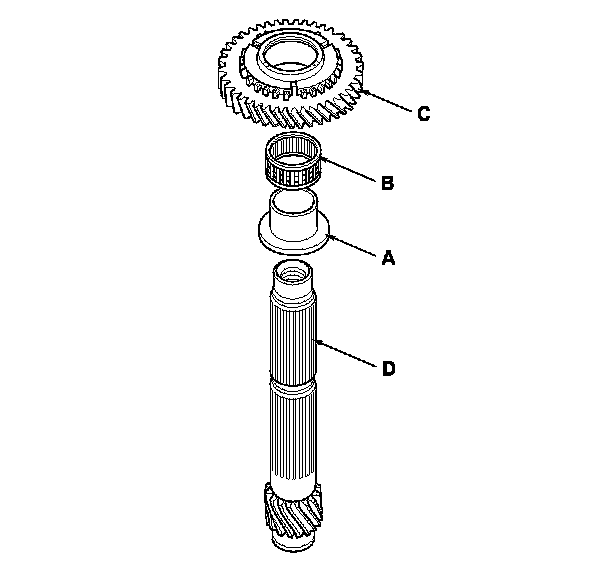

2. Install the 1st gear distance collar (A) with the needle bearing (B) and 1st gear (C) onto the countershaft (D).

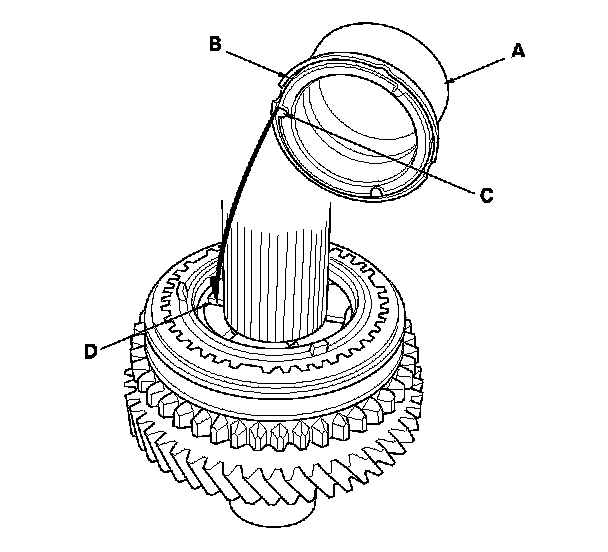

3. Install the triple cone synchro assembly (A) with the synchro spring (B) by aligning the synchro cone fingers (C) with the grooves (D) in 1st gear.






4. Install the 1st/2nd synchro hub (A) by aligning the synchro ring fingers (B) with the grooves (C) in the 1st/2nd synchro hub.






5. Install reverse gear (A) by aligning the slots of reverse gear and the 1st/2nd synchro hub (B). After installing, check the operation of the 1st/2nd synchro hub set.
NOTE: Make sure to align the slots in the 1st/2nd synchro hub as shown.






6. Install the triple cone synchro assembly (A) with the synchro spring (B) by aligning the synchro ring fingers (C) with the grooves (D) in the 1st/2nd synchro hub.






7. Install the 2nd gear distance collar (A) and friction damper (B) by aligning the friction damper fingers (C) with the grooves (D) in the 1st/2nd synchro hub.






8. Install the needle bearing (A).

9. Install 2nd gear (B) by aligning the synchro cone fingers (C) with the grooves (D) in 2nd gear.






10. Support the countershaft (A) on steel blocks, then press on 3rd gear (B) using the 40 mm inner driver handle (C) and a press (D).
NOTE: Do not exceed the maximum pressure.






11. Press on 4th gear (A) using the 40 mm inner driver handle (B) and a press (C).
NOTE: Do not exceed the maximum pressure.






12. Press on 5th gear (A) using the 40 mm inner driver handle (B) and a press (C).
NOTE: Do not exceed the maximum pressure.






13. Install the distance collar (A), the 35 mm shim (B), and temporarily press on the used old ball bearing (C) using the 40 mm inner driver handle (D), the 30 mm inner bearing driver attachment (E), and a press (F).
NOTE:

- Use any size of 35 mm shim, and note size you used. Measurements taken in the following steps will determine the correct shim to use for final assembly.

- Make sure the ball bearing is installed in the correct direction.





14. Measure the clearance between the bearing (A) and the 35 mm shim (B) with a feeler gauge (C).





15. If the measured clearance in step 14 is not within the standard, select another suitable 35 mm shim from the table, then go to next step to replace the 35 mm shim and the ball bearing with a new one. If the measured clearance in step 14 is within the standard, go to the next step to replace the only the ball bearing with a new one.

35 mm Shim





16. Remove the ball bearing and the 35 mm shim using a press. Countershaft Disassembly






17. Install the correct 35 mm shim (A) and new ball bearing (B) using the 40 mm inner driver handle (C), the 30 mm inner bearing driver attachment (D), and a press (E).
NOTE:

- If necessary, replace the 35 mm shim with the correct one selected in step 15.

- Make sure the ball bearing is installed in the correct direction.

18. Check the clearance between the bearing and the 35 mm shim with a feeler gauge.






19. Securely clamp the countershaft assembly in a bench vise with wood blocks (A).

20. Tighten the new special bolt (B) (left-hand threads).
NOTE: Apply new MTF to the bolt threads and flange.
