Front Passengers Power Window Switch Replacement (2-Door)

Front Passenger's Power Window Switch Replacement

2-door

1. Remove the passenger's door panel. Front Door Panel Removal/Installation (4-Door)

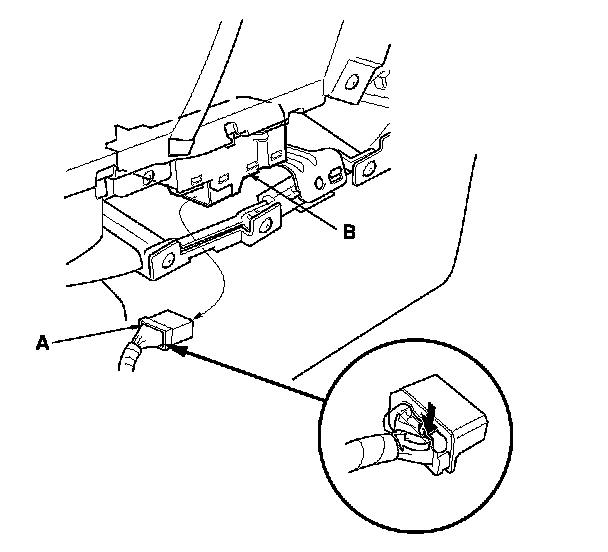

2. Disconnect the 37P connector (A) from the passenger's power window switch (B).






3. Remove the switch panel and armrest from the door panel. Front Door Panel Removal/Installation (4-Door)

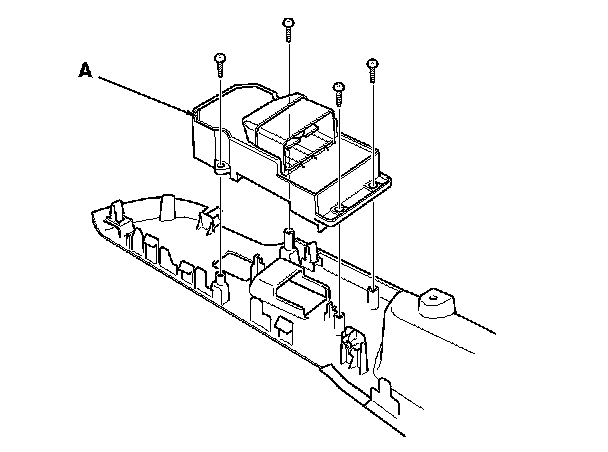

4. Remove the four screws and the passenger's power window switch (A).

5. Install the switch in the reverse order of removal.

6. With AUTO UP/AUTO DOWN function: Reset the power window control unit. Testing and Inspection
