Power Window Master Switch Replacement (4-Door)

Power Window Master Switch Replacement

4-door

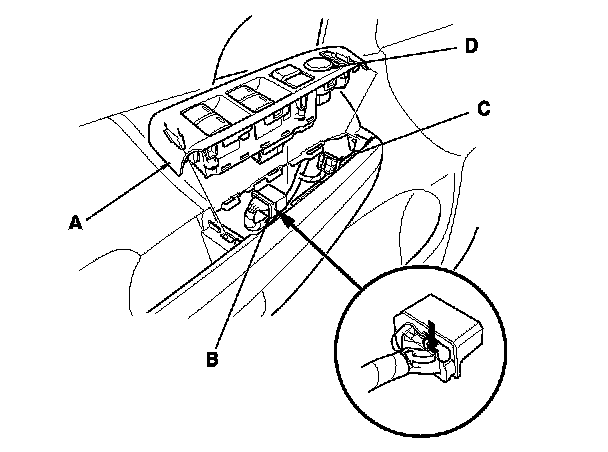

1. Carefully remove the power window master switch (A).

2. Disconnect the 37P connector (B) from the power window master switch, and the 13P connector (C) from the power mirror switch (D).

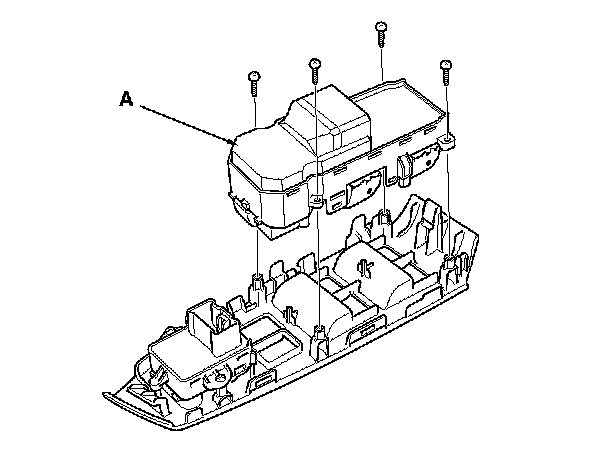

3. Remove the four screws and the power window master switch (A).

4. Install the switch in the reverse order of removal.

5. Reset the power window control unit. Testing and Inspection
