Navigation Unit DVD-ROM Replacement (With Navigation)

Navigation Unit DVD-ROM Replacement

NOTE: Check any official Honda service website for more service information about the navigation system.

1. Turn the ignition switch to ON (II).

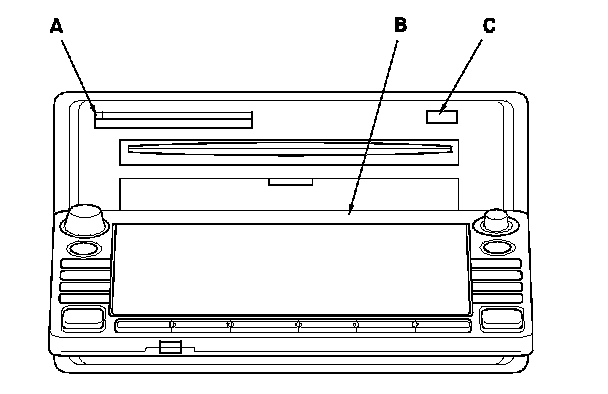

2. Push the PC card eject button (A) to eject the customer's PC card (if installed). Power is not required for this function.

3. Open the plastic cover (B) for the navigation DVD slot. Do not remove the plastic cover.

4. Push the CD eject button (C), and navigation DVD eject button and remove the discs (holding both discs by their edges to avoid fingerprints). To avoid scratches, place the navigation DVD, and customer's CD in a jewel case if available.

5. Insert the new DVD-ROM with the white label facing up.

6. Close the front cover. Do not turn the ignition switch to LOCK (0); watch the navigation screen until the data is down loaded to the navigation unit.

7. Do the Map Matching. How to Troubleshoot the Navigation System (With Navigation)
NOTE: After servicing, the front cover and PC card slot door must be closed.

8. Reinsert the customer's CD and PC card.
