Subframe: Service and Repair

Subframe Replacement

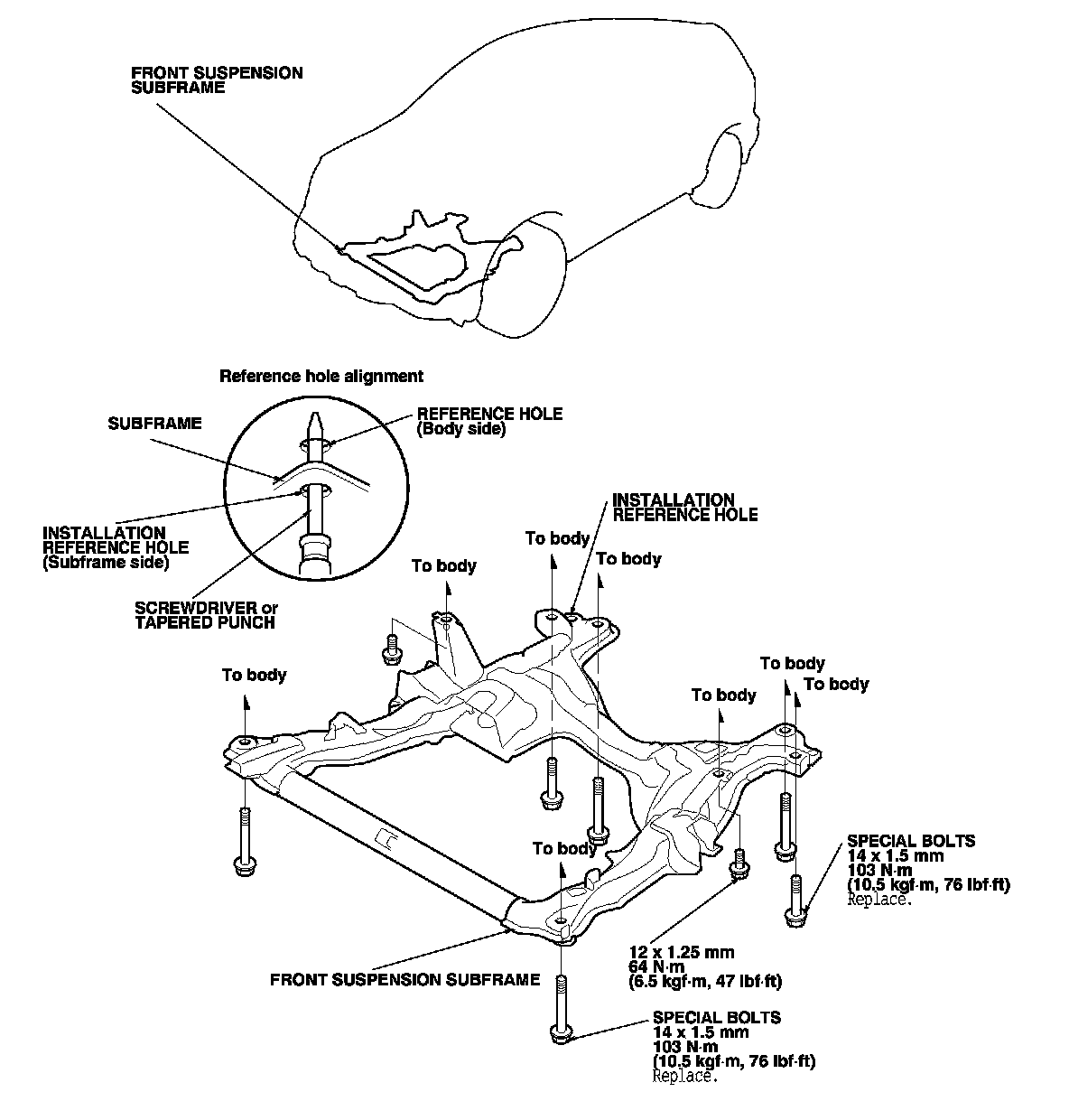

Front Subframe Torque

NOTE:

- After loosening the subframe mounting bolts, be sure to replace them with new ones.

- When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.

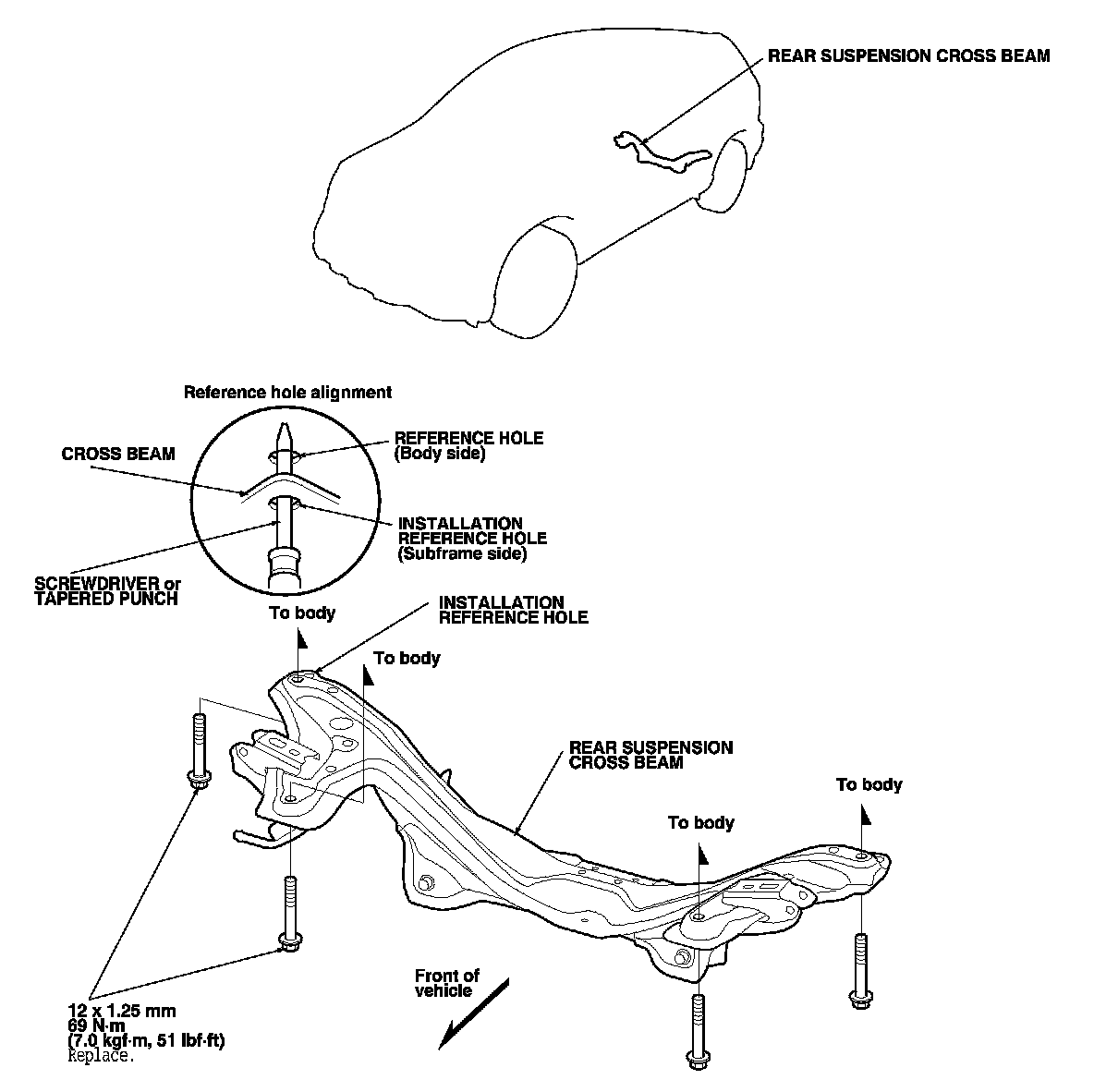

Rear Subframe Torque

NOTE:

- After loosening the subframe mounting bolts, be sure to replace them with new ones.

- When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.
