Lower Front Grille Replacement

Lower Front Grille Replacement

NOTE: Take care not to scratch the bumper and the grille.

1. Remove these items:
- Front bumper Front Bumper

- Front upper grille Upper Front Grille Replacement

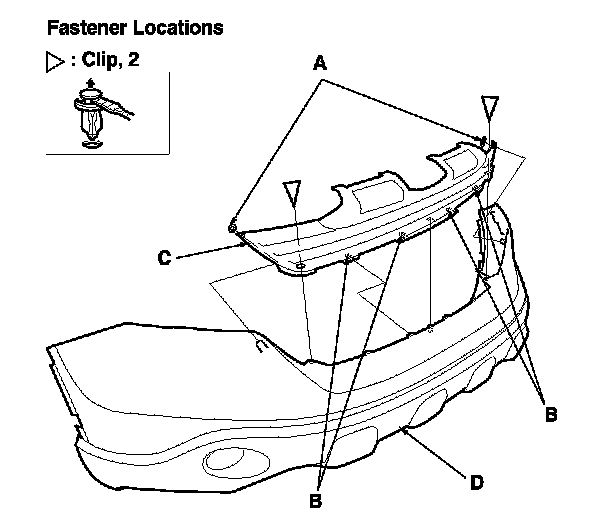

2. Remove the clips and the push nuts (A), then release the hooks (B) and remove the lower front grille (C) from the front bumper (D).

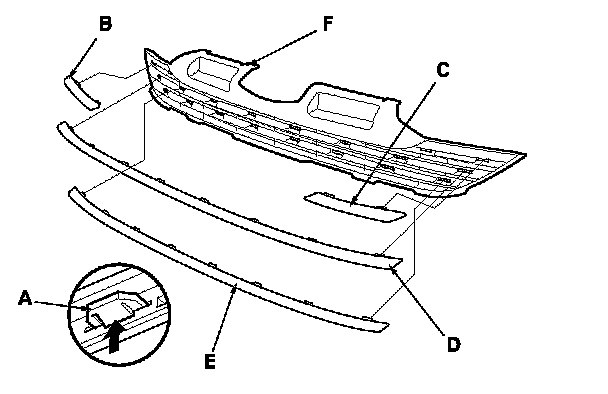

3. Release the hooks (A), then remove the right lower front grille molding (B), the left lower front grille molding (C), the middle lower front grille molding (D), and the lower front grille molding (E) from the lower front grille base (F).

4. Install the grille in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips and the hooks into place securely.
