Fuel Pipe Protector Replacement

Fuel Pipe Protector Replacement

NOTE:

- Take care not to scratch the body.

- Put on gloves to protect your hands.

1. Remove the left rear wheel. Service and Repair

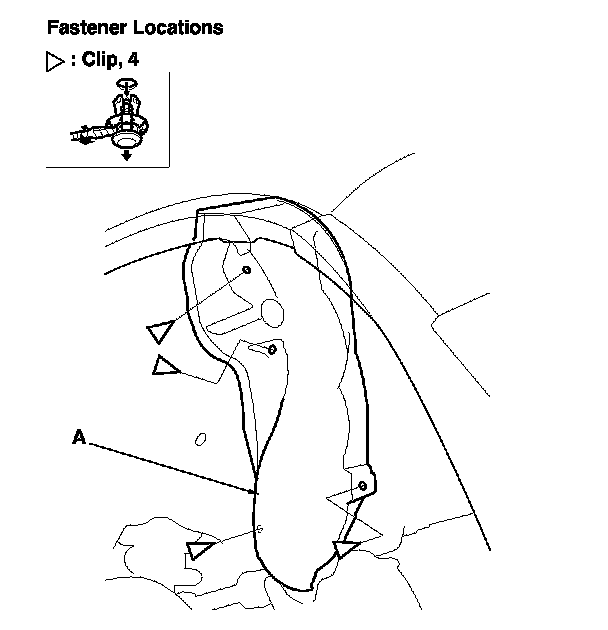

2. Remove the clips, then remove the fuel pips protector (A). Take care not to scratch the body.

3. Install the protector in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
