Middle Under-Floor Cover Replacement

Middle Under-floor Cover Replacement

NOTE: Take care not to scratch the body.

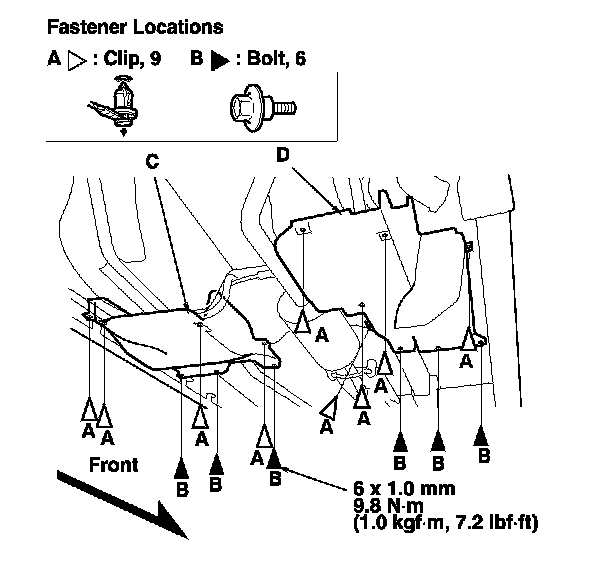

1. Remove the clips (A) and the bolts (B), then remove the left middle under-floor cover (C) and the right middle under-floor cover (D).

2. Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
