Rear Splash Guard Replacement

Rear Splash Guard Replacement

NOTE: Take care not to scratch the rear bumper and the body.

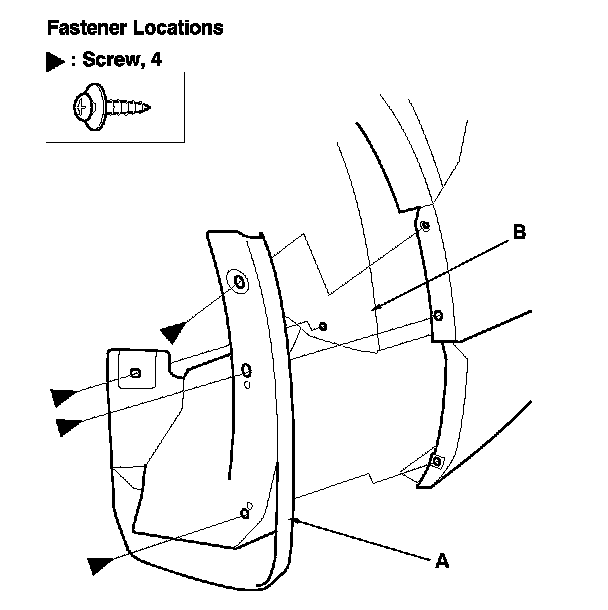

1. Remove the screws, then remove the rear splash guard (A) from the rear bumper (B) and the body.

2. Install the splash guard in the reverse order of removal.
