Rear Strake Replacement

Rear Strake Replacement

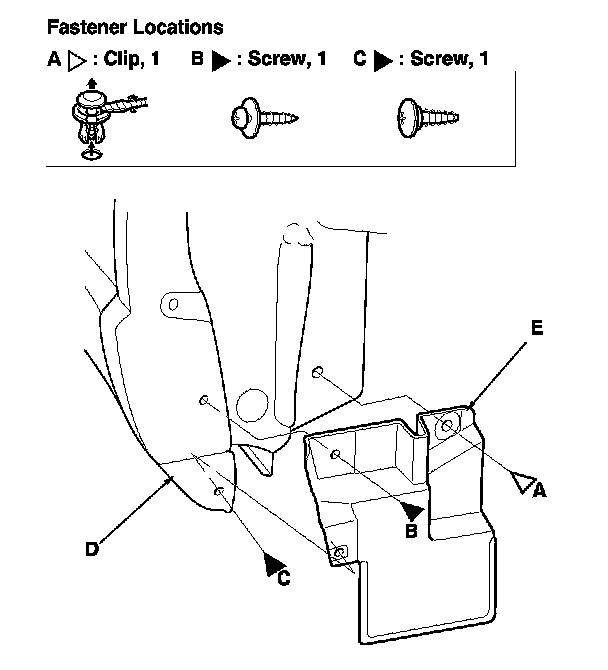

1. Remove the clip (A) and the screw (B) from the body, and remove the screw (C) from the side sill panel (D), then remove the rear strake (E) from the body.

2. Install the strake in the reverse order of removal, and note these items:
- If the clip is damaged or stress-whitened, replace it with a new one.

- Push the clips into place securely.
