Tailgate Shock / Support: Service and Repair

Tailgate Support Strut Replacement

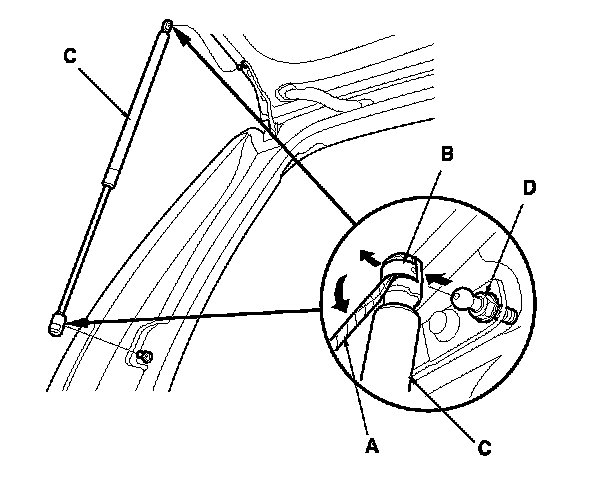

1. With the help of an assistant, use a flat-tip screwdriver (A) to pry the support strut clips (B) from each end of the support strut (C) at the tailgate and the body, then release the support strut from the pivot bolts (D). Do not remove the clips from the support strut.

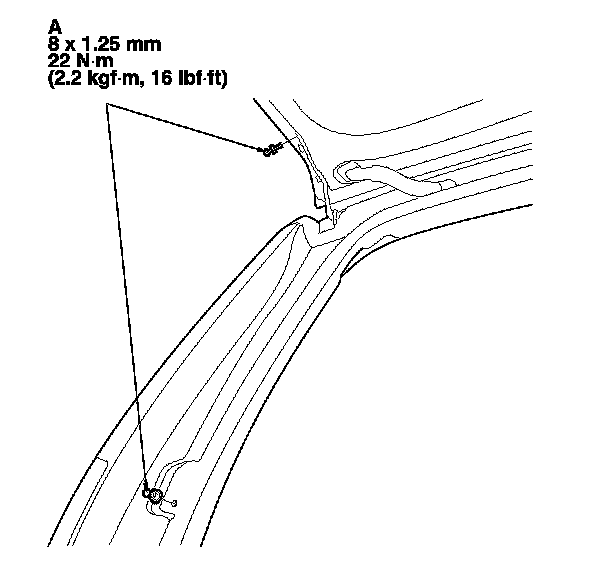

2. Remove the pivot bolts (A).

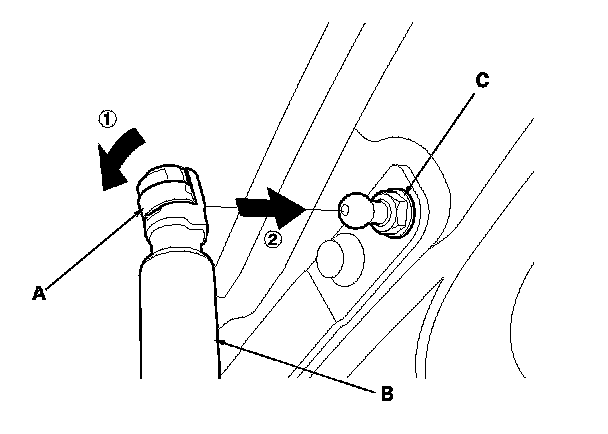

3. Set the clips (A) to the original position, then reattach the support strut (B) on the pivot bolts (C) by pushing the support strut onto the pivot.
