Outside Air Temperature Sensor Replacement
Outside Air Temperature Sensor Replacement 1.

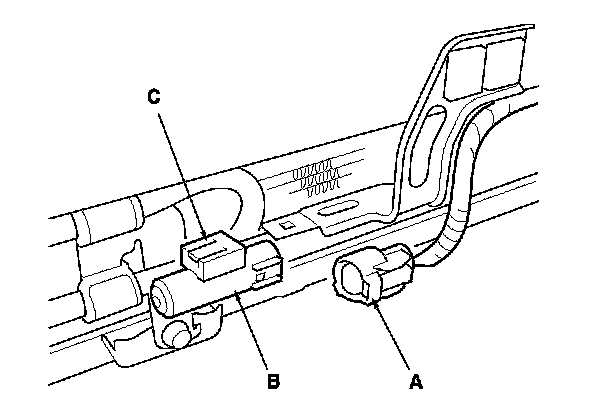

Disconnect the 2P connector (A) from the outside air temperature sensor (B).
2.
Lift the tab (C) to release the lock, then remove the outside air temperature sensor from the front bumper.
3.
Install the sensor in the reverse order of removal.
