Cabin Temperature Sensor / Switch: Service and Repair

In-car Temperature Sensor Replacement

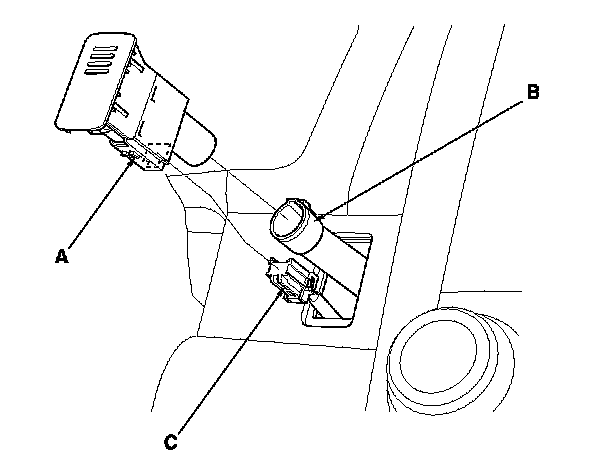

1. Push out the in-car temperature sensor (A) from behind the dashboard. Remove the air hose (B) from the in-car temperature sensor, then disconnect the 2P connector (C).

2. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
