CMP Sensor B Replacement

CMP Sensor B Replacement

1. Remove the EGR valve. EGR Valve Replacement

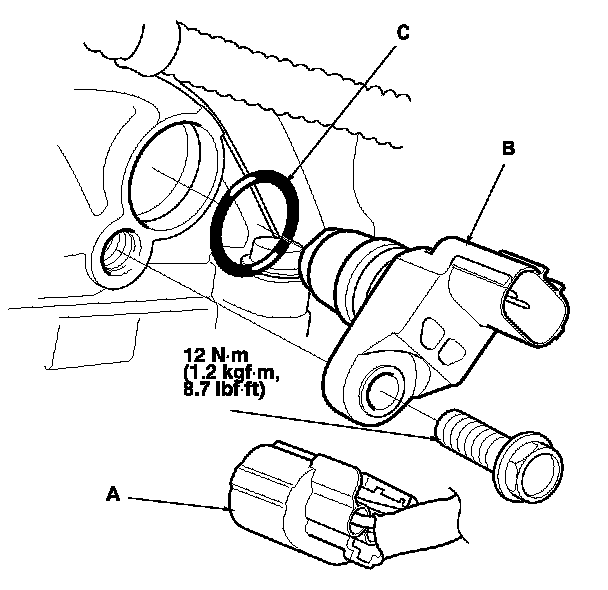

2. Disconnect the CMP sensor B connector (A).

3. Remove CMP sensor B (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
