Fuel Pump/Fuel Gauge Sending Unit Replacement




Fuel Pump/Fuel Gauge Sending Unit Replacement

1. Remove the fuel tank unit. Fuel Tank Unit Removal and Installation

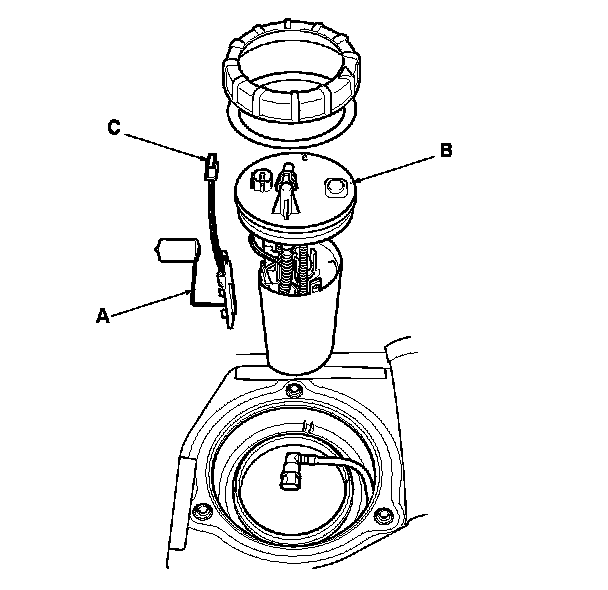

2. Remove the fuel level sensor (fuel sending unit) (A) from the fuel tank unit (B).

3. Check these items before installing the fuel tank unit:
- When connecting the wire harness, make sure the connection is secure and the connector (C) is firmly locked into place.

- When installing the fuel gauge sending unit, make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively.

4. Install the parts in the reverse order of removal.

5. Install the fuel tank unit. Fuel Tank Unit Removal and Installation
