Manifold Pressure/Vacuum Sensor: Service and Repair

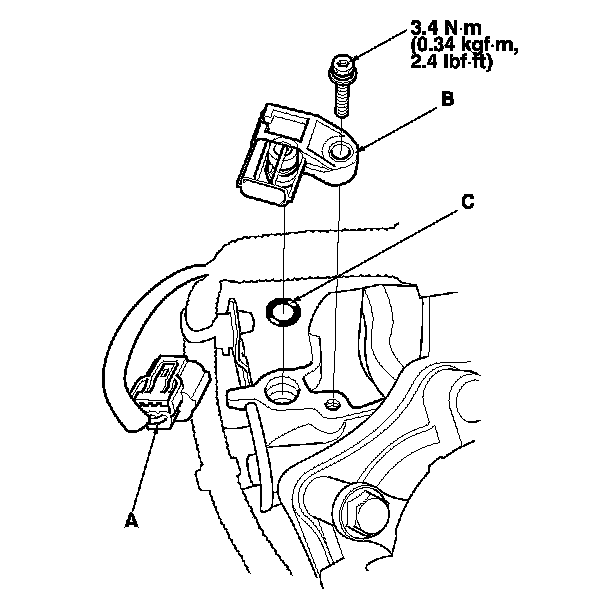

MAP Sensor Replacement

1. Disconnect the MAP sensor connector (A).

2. Remove the MAP sensor (B).

3. Install the parts in the reverse order of removal with a new O-ring (C).
