Secondary HO2S Replacement

Secondary HO2S Replacement

Special Tools Required

- O2 sensor wrench, Snap-on S3176, or equivalent, commercially available

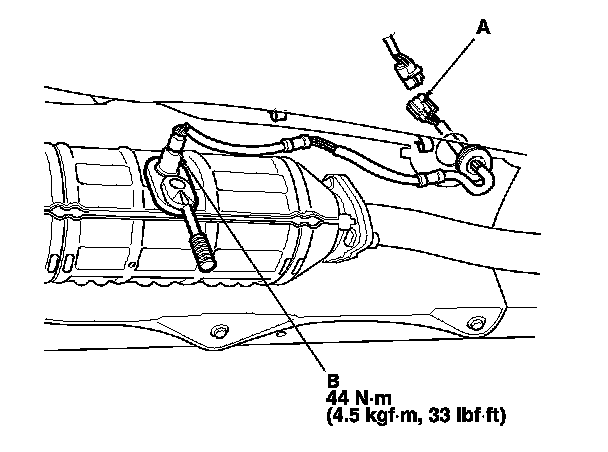

1. Disconnect the secondary HO2S 4P connector (A), then remove the secondary HO2S (B).

2. Install the parts in the reverse order of removal.
