CMP Sensor A Replacement

CMP Sensor A Replacement

1. Remove the EGR valve. EGR Valve Replacement

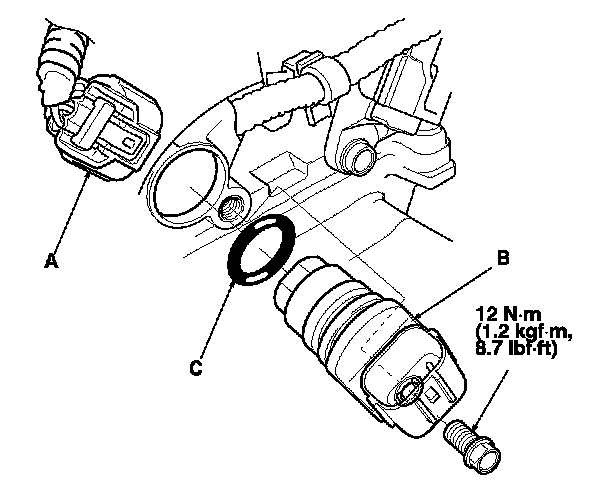

2. Disconnect the CMP sensor A 3P connector (A).

3. Remove CMP sensor A (B) from the intake camshaft side of the cylinder head.

4. Install the parts in the reverse order of removal with a new O-ring (C).
