CKP Sensor Replacement

CKP Sensor Replacement

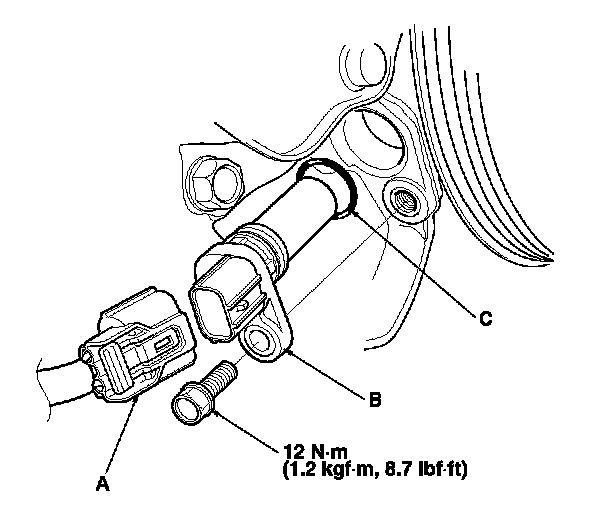

1. Disconnect the CKP sensor connector (A).

2. Remove the CKP sensor (B).

3. Install the parts in the reverse order of removal with a new O-ring (C).

4. Do the CKP pattern clear/CKP pattern learn procedure with the HDS. Initial Inspection and Diagnostic Overview
