Ignition Coil: Service and Repair

Ignition Coil Removal/Installation

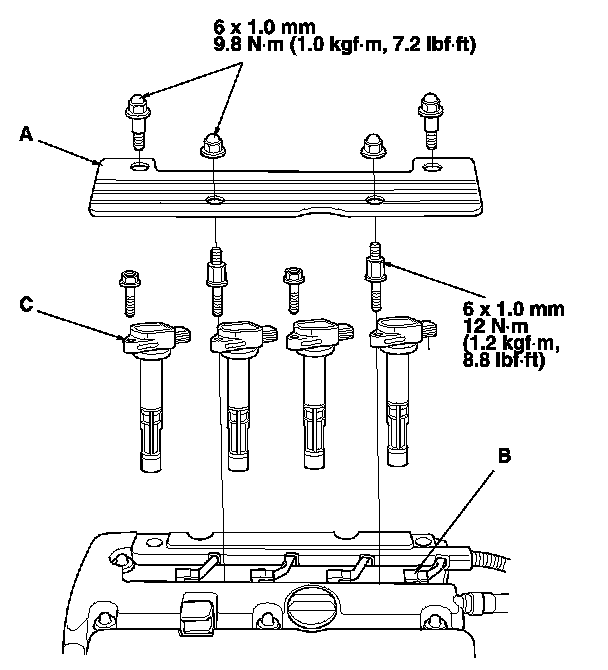

1. Remove the ignition coil cover (A), disconnect the ignition coil connectors (B), then remove the ignition coils (C).

2. Install the ignition coils in the reverse order of removal.
