Knock Sensor: Service and Repair

Knock Sensor Replacement

1. Lift the vehicle, and support it with jackstands.

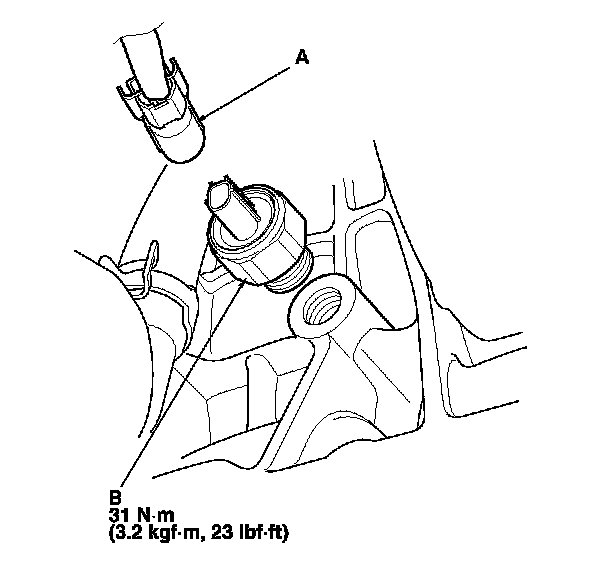

2. Disconnect the knock sensor connector (A).

3. Remove the knock sensor (B).

4. Install the parts in the reverse order of removal.
