Oil Pan, Engine

Oil Pan

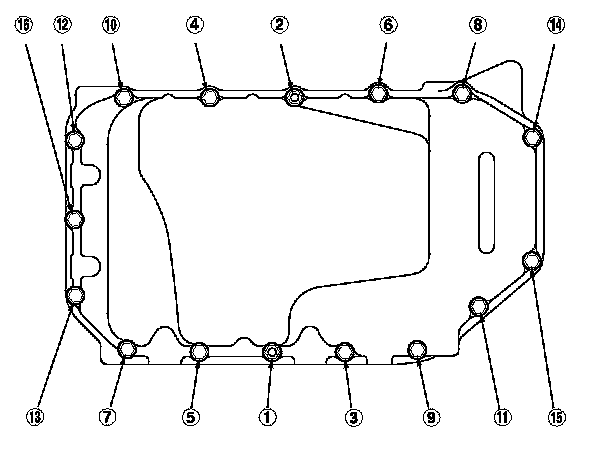

Tighten the bolts in three steps. In the final step, tighten all bolts, in sequence, to 12 N-m (1.2 kgf-m, 8.8 lbf-ft).
