System Specifications

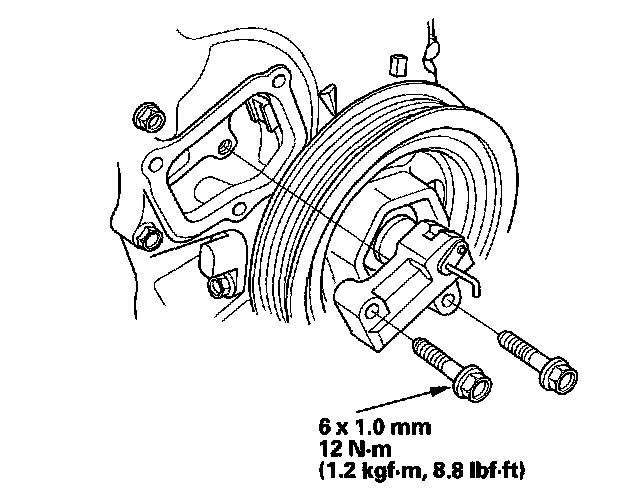

Timing Chain Tensioner





Crankshaft Pulley

Torque 49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten additional 90°.

Cover
