Removal and Replacement




Alternator Removal and Installation

Removal

1. Do the battery terminal disconnection procedure. Procedures

2. Remove the drive belt. Service and Repair

3. Remove the drive belt auto-tensioner. Drive Belt Auto-Tensioner Removal/Installation

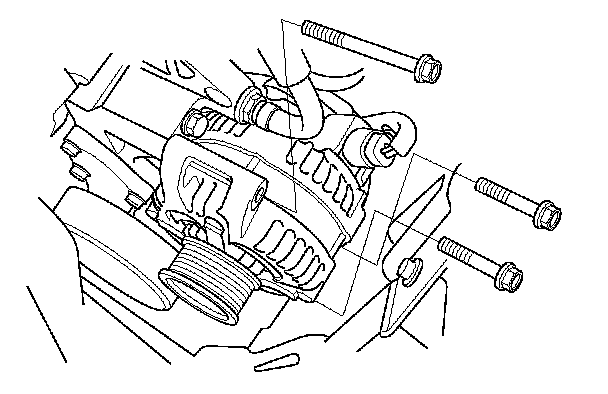

4. Remove the three bolts securing the alternator.

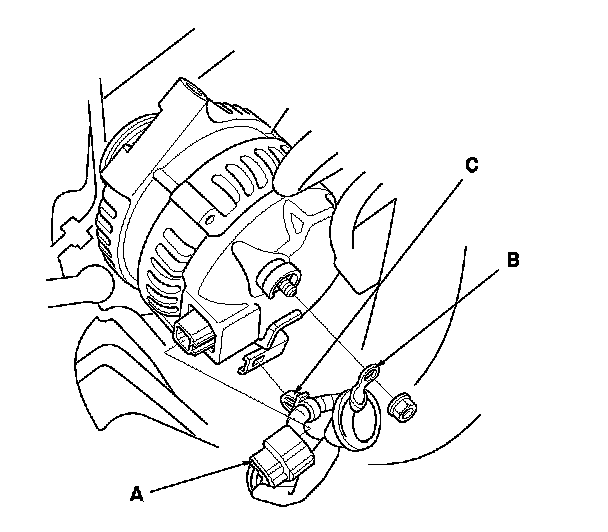

5. Disconnect the alternator connector (A), BLK wire (B), and harness clamp (C) from the alternator, then remove the alternator.






Installation

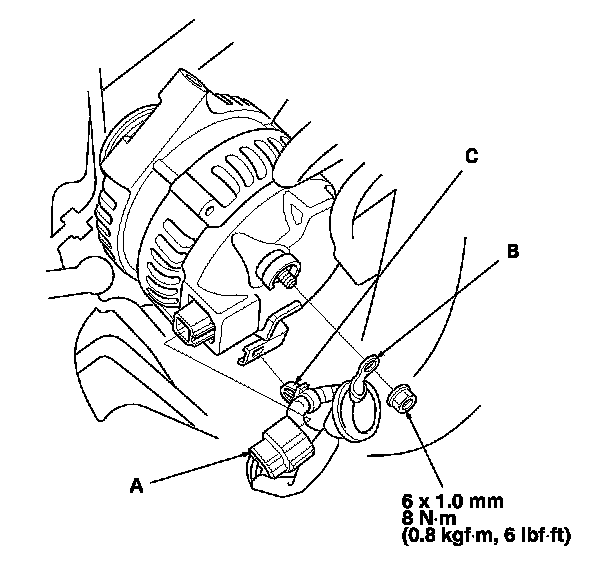

1. Connector the alternator connector (A), BLK wire (B), and harness clamp (C) to the alternator.

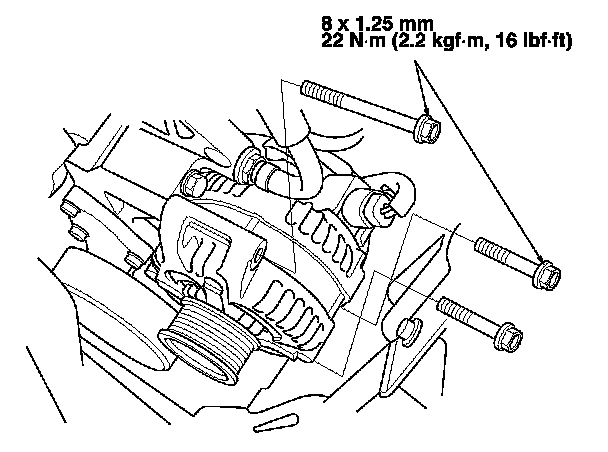

2. Tighten the three bolts securing the alternator.

3. Install the drive belt auto-tensioner. Drive Belt Auto-Tensioner Removal/Installation

4. Install the drive belt. Service and Repair

5. Do the battery terminal reconnection procedure. Procedures
