A/T Transfer Assembly Disassembly

A/T Transfer Assembly Disassembly

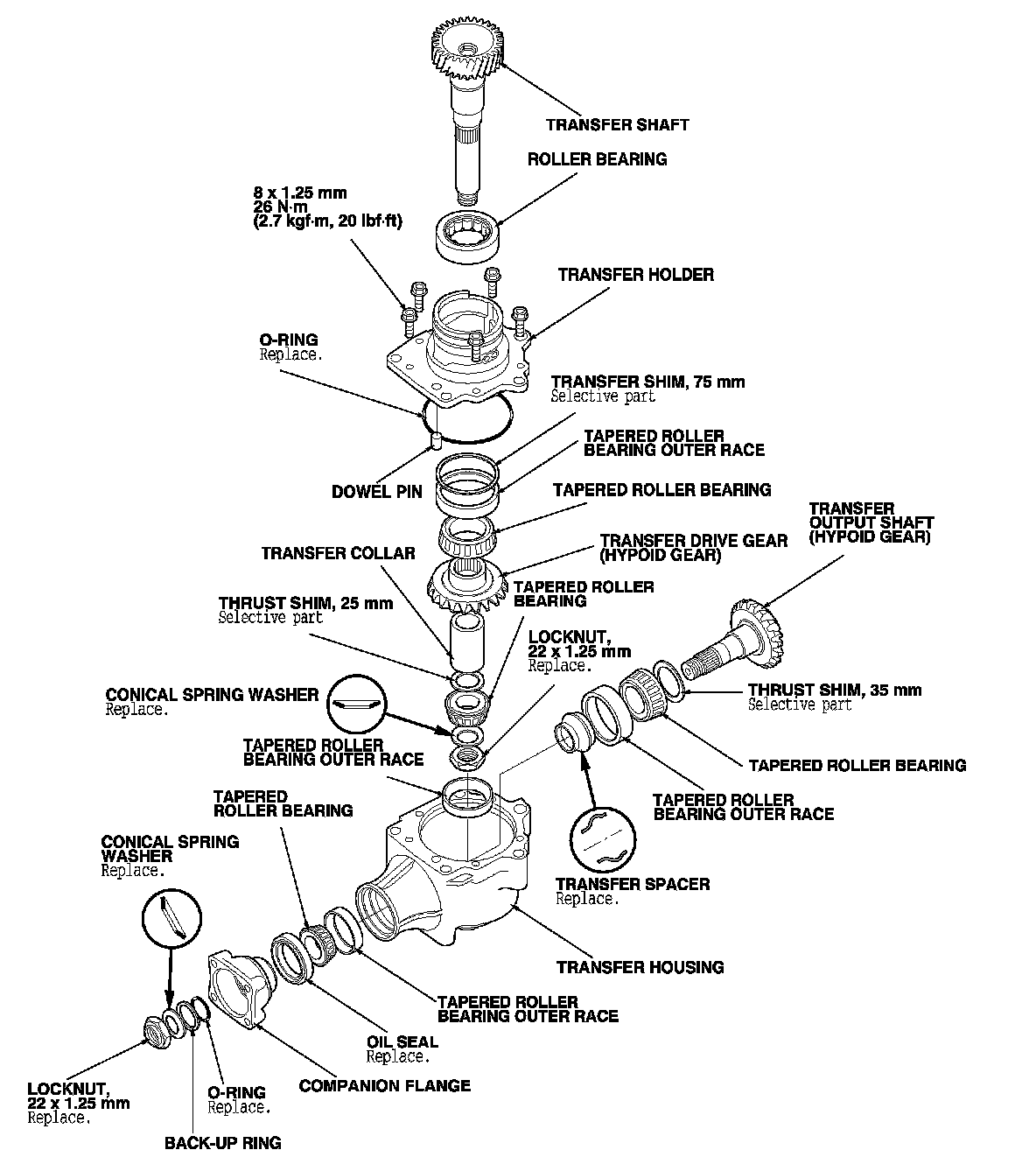

Exploded View





Special Tools Required

- Holder handle 07JAB-001020A
- Companion flange holder 07RAB-TB4010A or 07RAB-TB4010B
NOTE: Refer to the Exploded View as needed during the following procedure.

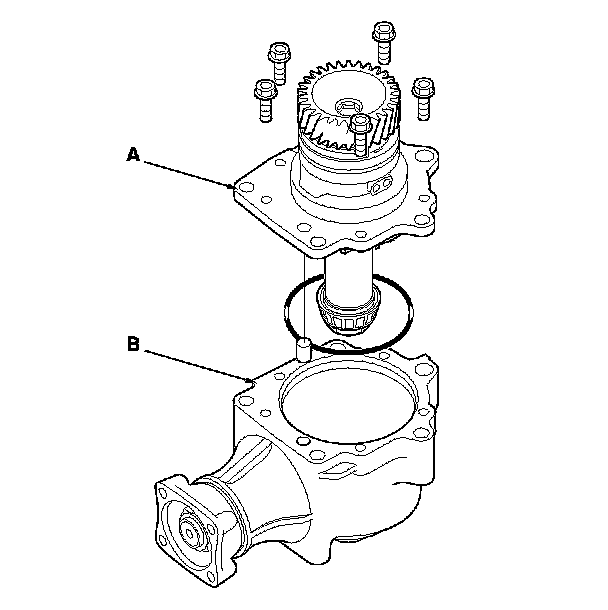

1. Remove the transfer holder (A) from the transfer housing (B).

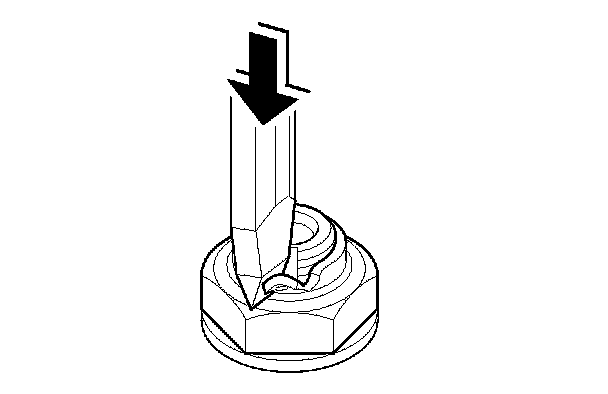

2. Cut the lock tab on the locknut using a chisel.

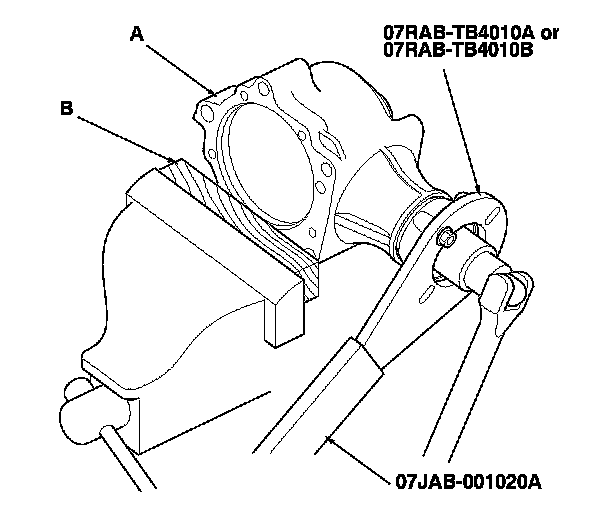

3. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and a vise.

4. Install the companion flange holder on the companion flange, then loosen the locknut.

5. Remove the companion flange holder.

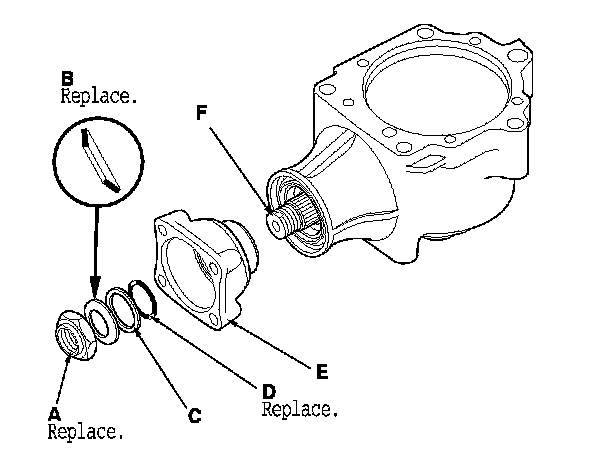

6. Remove the locknut (A), the conical spring washer (B), the back-up ring (C), the O-ring (D), and the companion flange (E) from the transfer output shaft (F).

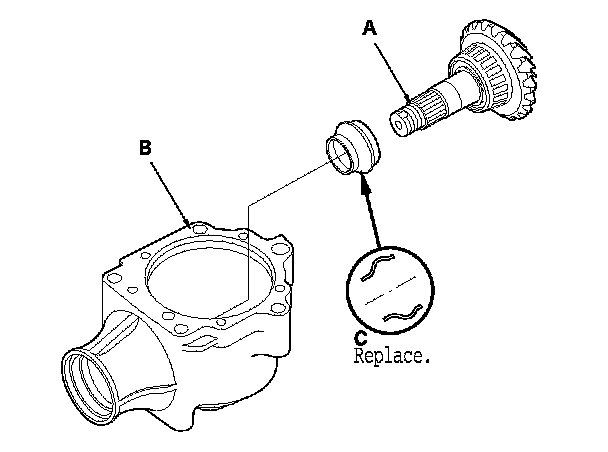

7. Remove the transfer output shaft (A) from the transfer housing (B), then remove the transfer spacer (C) from the transfer output shaft.

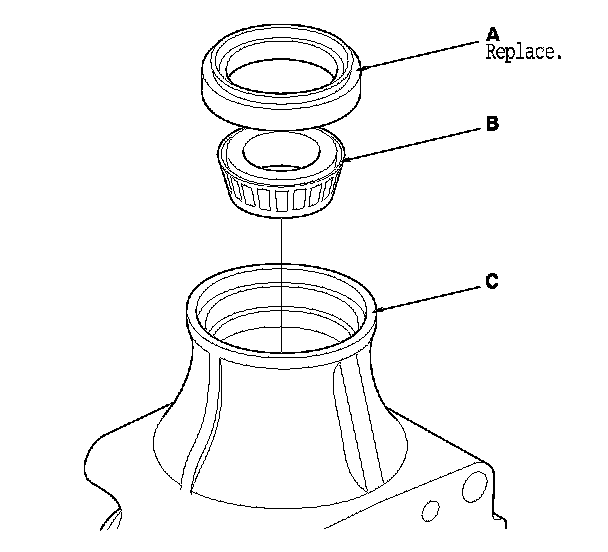

8. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing (C).
