Transfer Assembly Installation




Transfer Assembly Installation

1. Clean the areas where the transfer assembly contacts the transmission with solvent, and dry with compressed air. Then apply transmission fluid to the seal contact area.

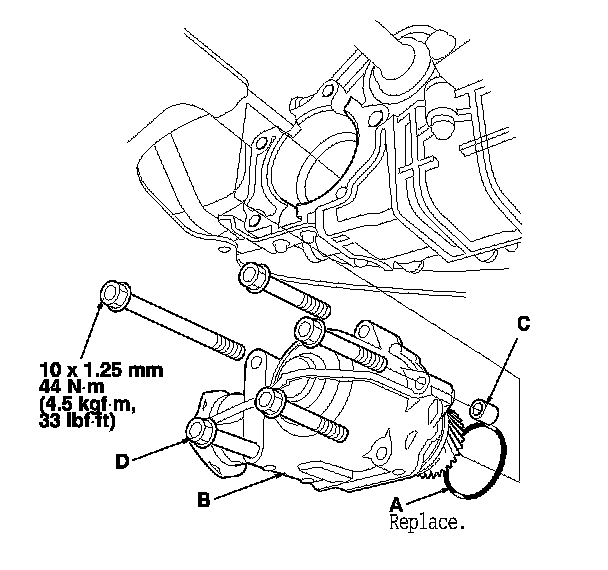

2. Install a new O-ring (A) on the transfer assembly (B).

3. Install the dowel pin (C) in the transfer housing.

4. Install the one bolt (D) part-way in the rear lower of the transfer housing, and install the transfer assembly on the transmission.

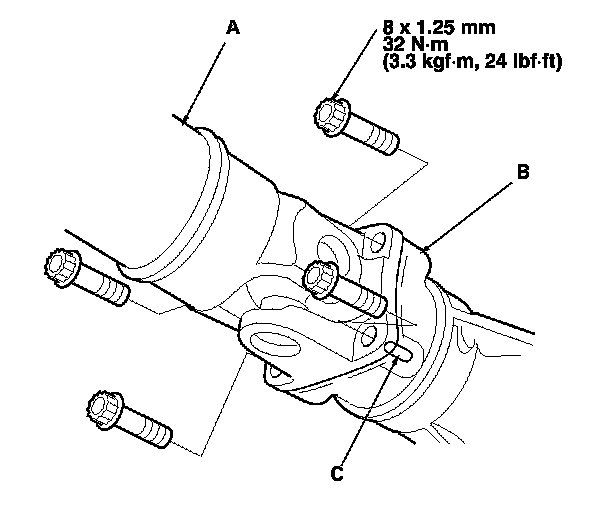

5. Install the propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C).

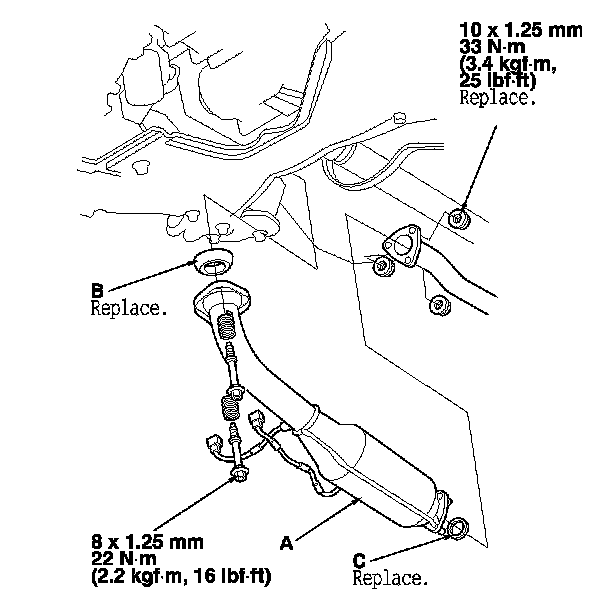

6. Install the three-way catalytic converter (A) with the bolts, new self-locking nuts, and new gaskets (B) (C).

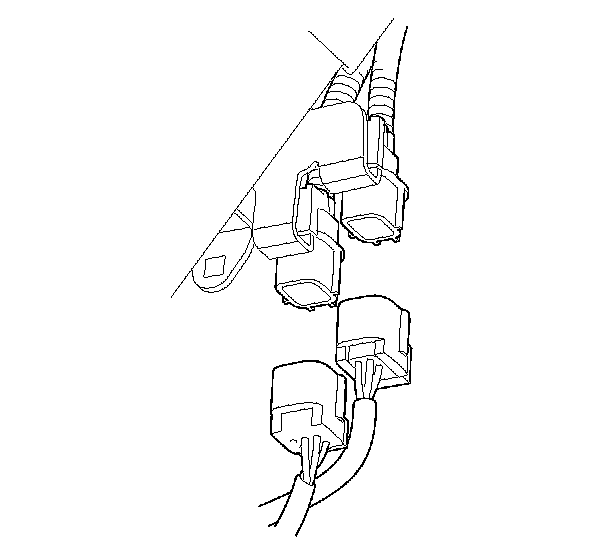

7. Connect the A/F sensor connector and the secondary heated oxygen sensor connector.






8. Install the sensor harnesses in the harness clamps.

9. Refill the transmission with ATF. ATF Replacement
