Passengers Power Window Switch Test

Passenger's Power Window Switch Test

1. Remove the passenger's door panel.
- Front Service and Repair

- Rear Service and Repair

2. Disconnect the 8P connector (A) from the passenger's power window switch (B).

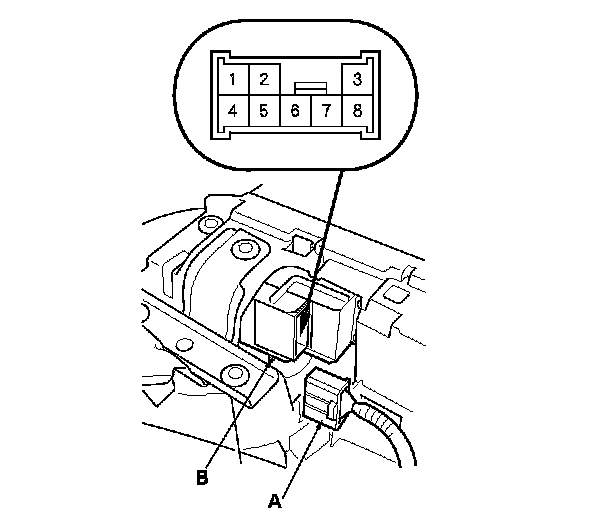

Front passenger's

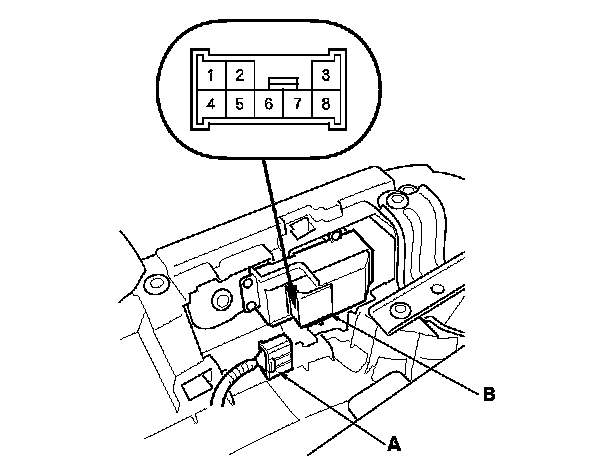

Rear

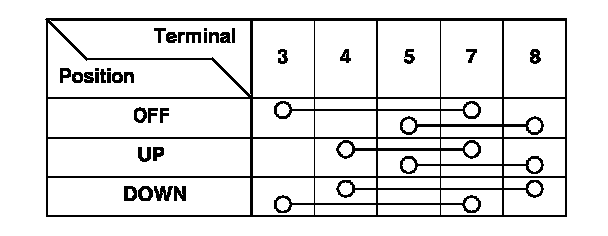

3. Check for continuity between the terminals in each switch position according to the table.

4. Connect battery power to terminal No. 4 and ground terminal No. 7 (or No. 8). The switch light should come on.

5. If the continuity or switch light tests is not as specified, replace the switch. Service and Repair
