Wiper Arm: Adjustments
Wiper Arm/Washer Nozzle Adjustment
1. Turn the windshield wipers ON then OFF. Make sure when the wiper arms stop at the park position.
Windshield wiper arms stop position
Rear window wiper arms stop position
2. When you turn on the washer(s), confirm 50 % or more of the washer fluid lands within the spray area. If the spray area is not within the standard positions, adjust the nozzle(s).

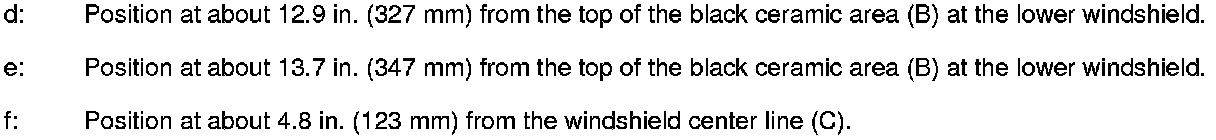

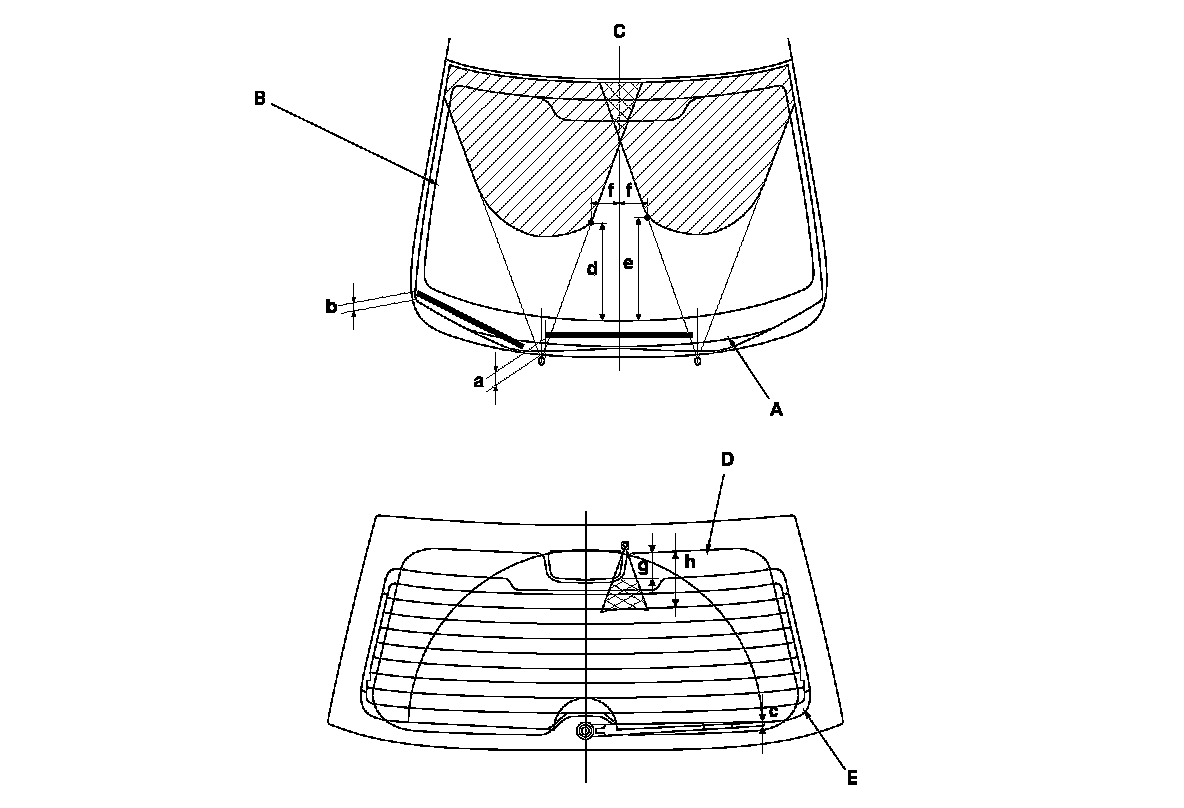

Windshield washer nozzle position
Rear window washer nozzle position
