Radio, Stereo, and Compact Disc: Description and Operation

Audio System Description

Overview

The audio unit acts as the processor for all audio functions. Select audio functions from the audio unit, the audio remote (on the steering wheel), or by using the navigation voice control system. The audio display provides the current audio status. For vehicles with navigation, additional audio information is available by touching the audio button on the navigation audio screen (See the owner's manual and the navigation system manual for more details.).

The XM receiver passes its signal to the audio unit. In addition, it communicates with the audio unit via the GA-Net bus. Any open connections in the GA-Net bus circuit causes audio and navigation functions to appear inoperative.

For vehicles with navigation, pressing the open/close switch on the navigation display panel allows access to the CD slot and PC card.

A security signal is daisy-chained between the audio and vehicle components for integration into the vehicle's security system.

Speed-sensitive volume compensation (SVC)

Some audio systems are equipped with speed-sensitive volume compensation (SVC). The navigation or audio unit receives the vehicle speed pulse (VSP) from the PCM. The system processes the speed input and increases the navigation or audio system volume level as the vehicle speed increases to compensate for the various interior noises that occur at higher speeds. When the vehicle slows down, the volume returns to its normal level. The SVC has four settings: SVC OFF, LOW, MID and HIGH that can be adjusted using the navigation or audio unit. The SVC comes from the factory with the MID setting as the default.

To change the audio unit SVC setting, press the tune folder sound knob repeatedly until the SVC is displayed, rotate the knob to adjust the SVC to the desired setting (SVC OFF, LOW, MID, or HIGH).

To change the navigation unit SVC setting, press the AUDIO button, and then select the SOUND icon on the navigation display. Press the navigation display to select the desired setting (OFF, LOW, MID, HI).

The navigation system allows voice control of the audio, XM, PC card, and CD player. Voice control commands are communicated on the GA-Net (audio unit). When using the navigation TALK/BACK button, the audio is muted on all speakers and you get navigation sound on the front channels. When using the navigation or route guidance (RG), the front speakers give the navigation sound and the rear speakers continue to play. For more information, see the navigation section. The outline of the interruption function is shown in this table.

USB Adapter

The audio unit can play digital music from portable audio players, USB drive, etc. When the device is plugged into the USB adapter. The audio unit uses the GA-NET to allow you to control the device from the audio unit when searching and playing the files. Not all players and player functions work with the USB adapter. Please see the owner's manual for more information.

GA-Net Bus Configuration

The GA-Net bus passes audio and navigation commands throughout the navigation and audio components.

These commands include navigation touch screen and hard button signals, audio/XM selections by voice, and XM station and music title names. Because the entire bus is daisy chained between components (see diagram), any open or short in the GA-Net bus harness will cause any or all of these functions to become inoperative. Naturally the addition of any audio accessory must maintain the continuity of the GA-Net bus by installing the Y cable included with the accessory kit.

With navigation

NOTE: All items may not apply to this vehicle. See the owner's manual for more information.

Audio Glossary

Audio Glossary

Audio Unit Connector for Inputs and Outputs

NOTE: Refer to the navigation section for the connector C, D, and H inputs and outputs. Description and Operation

With navigation (Navigation unit)

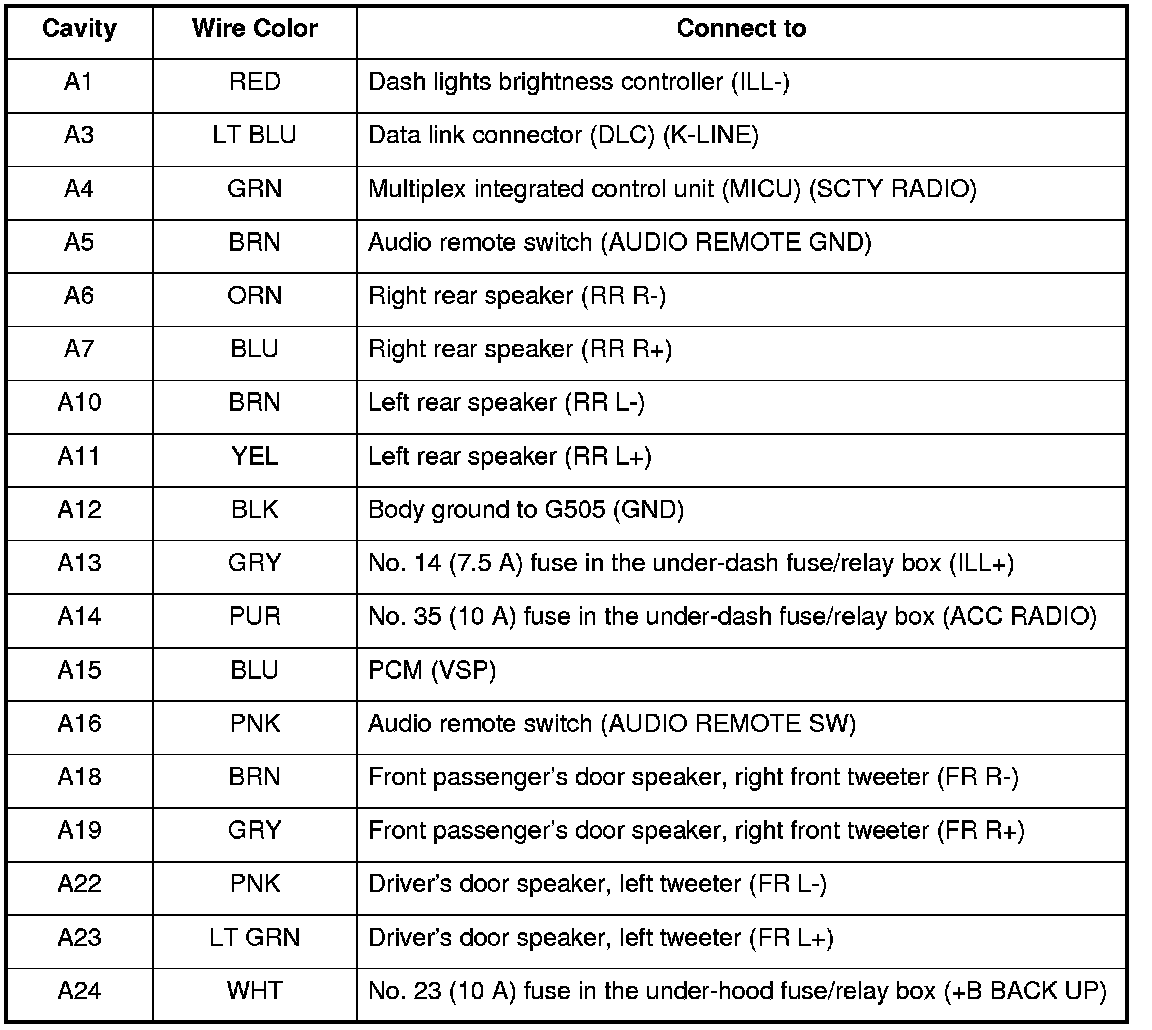

NAVIGATION UNIT CONNECTOR A (24P)

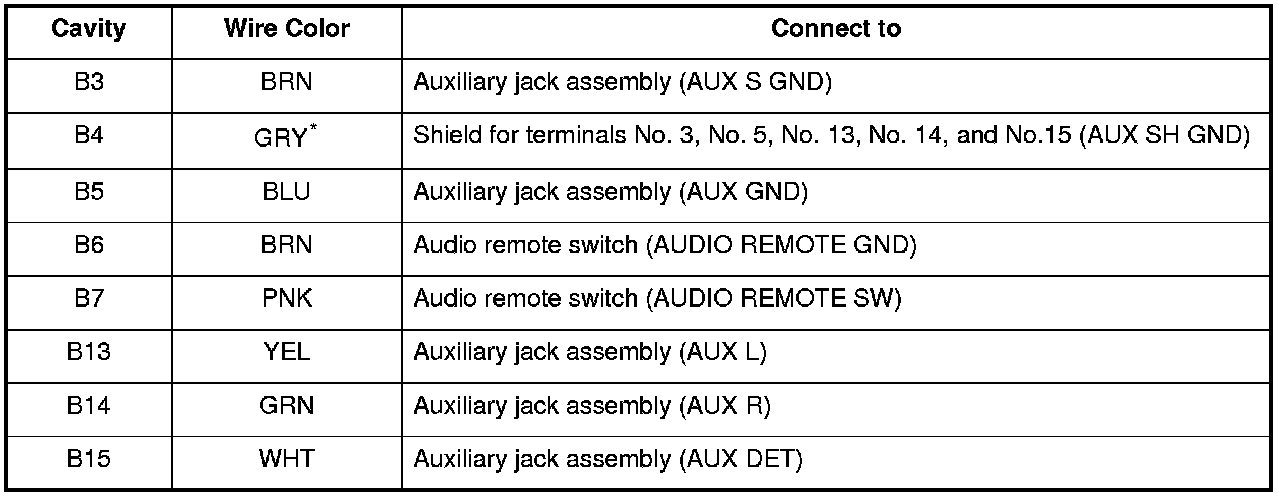

NAVIGATION UNIT CONNECTOR B (24P)

*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

NAVIGATION UNIT CONNECTOR E (14P)
