Steering Angle Sensor: Service and Repair

VSA System Steering Angle Sensor Replacement

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.

1. With the wheels in the straight-ahead position and the steering wheel centered, remove the steering wheel. Steering Wheel Removal

2. Remove the steering column covers and the cable reel. Service and Repair

3. Remove the combination switch assembly. Steering Column Removal and Installation

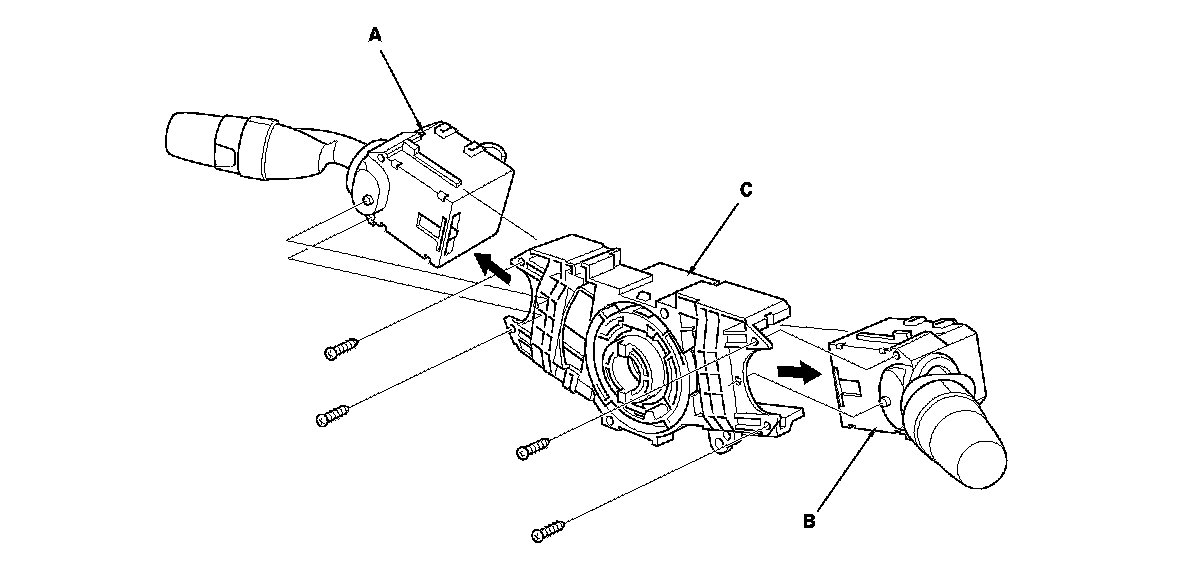

4. Remove the combination light switch (A) and the wiper/washer switch (B) from the combination switch body assembly (C).

5. Install the combination switch body assembly in the reverse order of removal.
NOTE:

- Do not remove the steering angle sensor from the combination switch body.

- When installing the cable reel, set the turn signal canceling sleeve position so that the arrow points straight up. Service and Repair

- When installing the combination switch, tighten the mounting screws to the specified torque and sequence shown. Steering Column Removal and Installation
