Home >> Honda >> 2009 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 5 - Horn Connector View

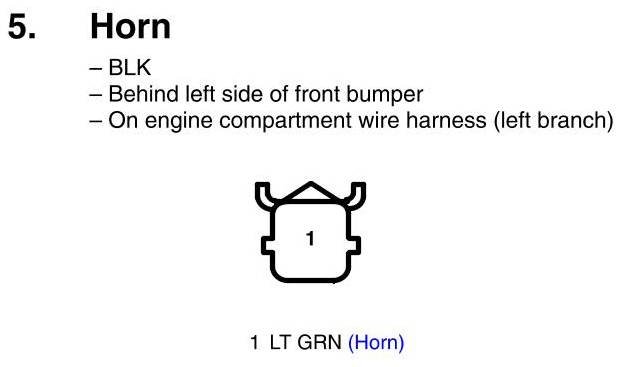

View 5 - Horn Connector View
